NSYCRN54200
ENCLOSURE CRN-54/200
Trade Price
POA
Per
1
Unit
Pack Quantity
Information

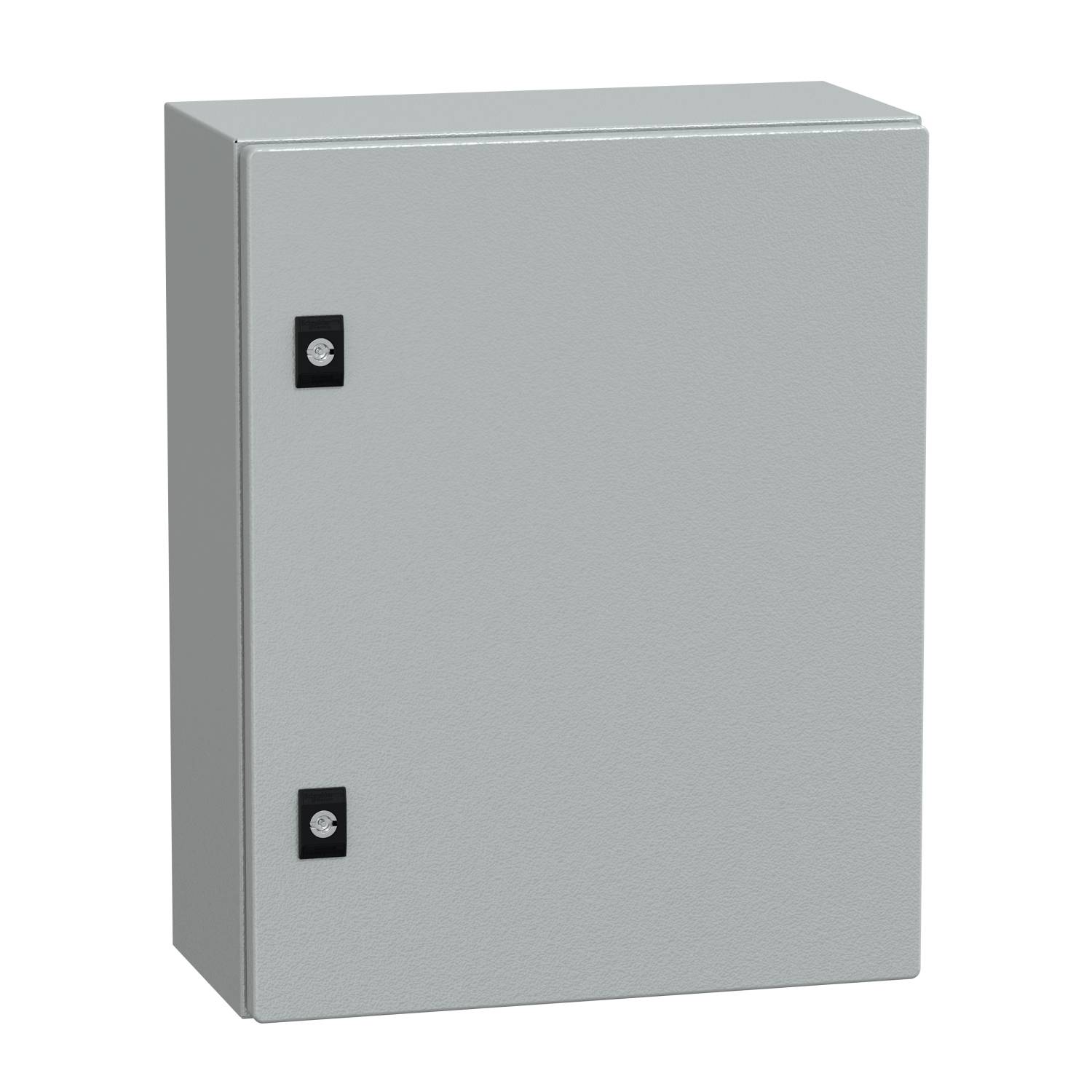

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 400 mm x (H) 500 mm x (D) 200 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
Technical Specifications
Range
Spacial
Product name
Spacial CRN
Application
Multi-purpose
Category
Compact enclosure
enclosure nominal height
500 mm
enclosure nominal width
400 mm
Enclosure nominal depth
200 mm
Installation accessory type
Wall-mounting
Device composition
1 body 1 cable gland plate 1 door 1 lock
Door type
Plain
Mounting plate description
Without mounting plate
body type
Back welded with double profile forming a protected sealed area Sides made from a single folded section
Number of doors
Front face: 1 door(s)
Door opening side
Reversible (120 °)
lock type
3 mm double-bar lock
Type of gland plate
Standard
accessibility for operation
Front
Removable parts
Door by hinges Cable gland plate by screws
Material
Body: steel
Surface finish
Epoxy-polyester powder
Colour
Grey (RAL 7035)
Standards
IEC 62208
product certifications
cUL UL DNV-GL
Net weight
8.382 kg
IP degree of protection
IP66 conforming to IEC 60529
IK degree of protection
IK10 conforming to IEC 62262
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
21.500 cm
Package 1 Width
41.000 cm
Package 1 Length
51.500 cm
Package 1 Weight
8.731 kg
Unit Type of Package 2
PAM
Number of Units in Package 2
40
Package 2 Height
198.000 cm
Package 2 Width
100.000 cm
Package 2 Length
120.000 cm
Package 2 Weight
362.240 kg
Warranty
18 months
Document Links
Datasheet
