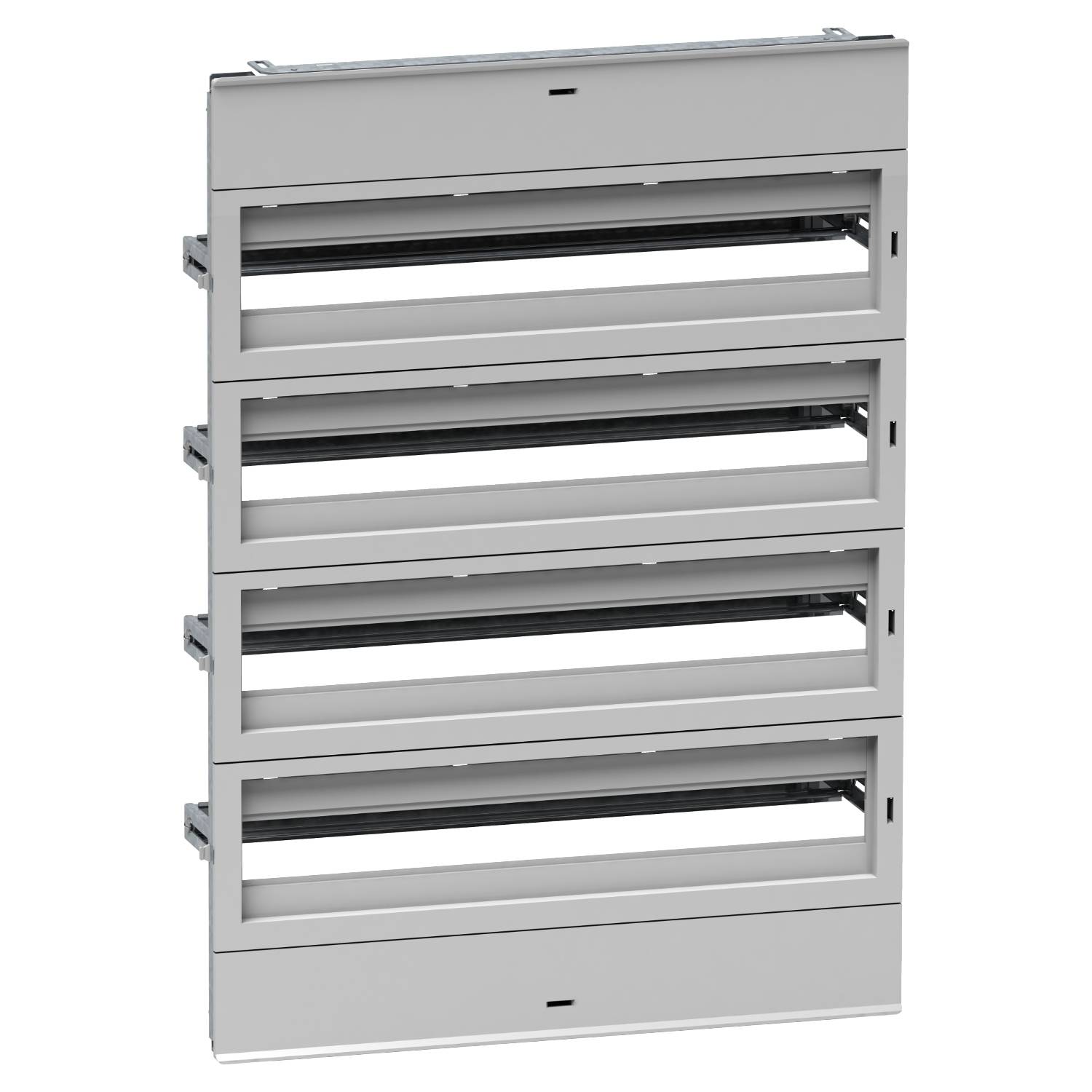

NSYDLA112G

Range

Spacial

accessory / separate part category

Mounting accessory

Application

Multi-purpose Modular distribution application

Product or component type

Chassis

Device short name

DLA

For enclosure nominal dimensions

-

Mounting location

Front of enclosure

Range compatibility

Spacial (Spacial S3D) Thalassa (Spacial CRN) Spacial (Spacial S3X) Thalassa (Thalassa PLM)

Device composition

1 chassis structure 4 front panels with 35 mm DIN rail 2 finish cover 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²

Quantity per set

Set of 1

Material

Front panel: self-extinguishing insulating Chassis structure and rails: steel

Colour

Front panel: grey (RAL 7035)

Fixing mode

By fixing element - on front with supports location

Adjustment

In height from 40 to 85 mm for DIN rail

Number of horizontal rows

4

Total number of 18 mm modules

112

Type of front plate

Plain and cut-out plates

Number of cut-out

4 cut-outs

Height

780 mm

Width

560 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

15.0 cm

Package 1 Width

58.0 cm

Package 1 Length

79.0 cm

Package 1 Weight

7.7 kg

Warranty

18 months
