CYC030SNL059N
30w Constant Current Single Stage (590mA) LED Driver for Panels
Trade Price
POA
Per
1
Unit
EACH
Pack Quantity
1
Document Links
Datasheet
Product Overview
The CYANIRIS range of constant current LED drivers support the operation of Kosnic luminaires and various professional lighting fixtures. This range of single-stage drivers offer high power factor in a class II construction for independent installation and are wired ready for use. All drivers have built-in overload, thermal, short circuit and open circuit protection.
Specifications
Shape / Type
Driver
Colour Finish
Power (W) Max.
30
Input Current (mA)
160
Input Voltage
180-264Vac 50-60Hz
Power Factor
> or equal to 0.95
IP Rating
IP20
Class Protection
Class II
Output Voltage (Vdc)
30-52
Output Current (mA)
590
Ripple Current (%)
< 10
Inrush Current (A)
1.0 at 400µs

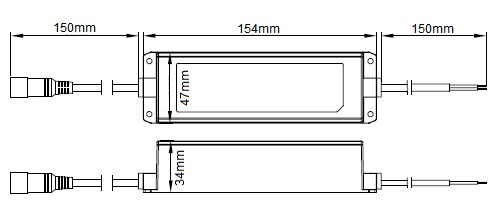

Length (mm)
154
Width (mm)
47
Depth (mm)
34
Maximum Case Temperature (°C)
75
Ambient Temperature (°C)
-20 to 40
Barcode
5060063426570
Packaging
Outer Box Length (mm)
450
Outer Box Width (mm)
370
Outer Box Height (mm)
420
Volume
0.06993
Box Quantity
100
Outer Box Weight (kg)
20
