The emergency module is an optional extra for the latest Kosnic LED DD lamps. It is designed for installing within the fitting to provide a battery back-up supply in the event of a power cut through the supplementary socket on the LED DD lamp. The emergency module requires a permanent live un-switched supply to maintain the battery charge.

Compatible with Kosnic LED DD lamps for maintained or non-maintained emergency lighting

Conforms to EN 61347-1, EN 61347-2-7 and EN 61347-2-13

Voltage change-over threshold according to EN 60598-2-22

3 hours rated duration

Li-Ion battery for improved battery lifespan allowing frequent partial discharge without capacity reduction

Over-charge, over-current, short-circuit and deep discharge protection for battery

Constant current output

Charging status LED built into DD lamp

For building-in

Supplied with internal battery and all necessary leads and connectors

Shape / Type

Emergency Module

Compatible Lamp Type

KLED09/12/18STD, KLED12/18CRD, KLED12DIMD, KLED12DTD, K2DC9-18STD, K2D9-18CRD, KRTDQ12HFB, KRTDQ12MGB

Input Current (mA)

35

Input Voltage

220-240Vac

IP Rating

IP20

Open Circuit Voltage (Vdc)

60

Maximum Working Voltage (Vdc)

58

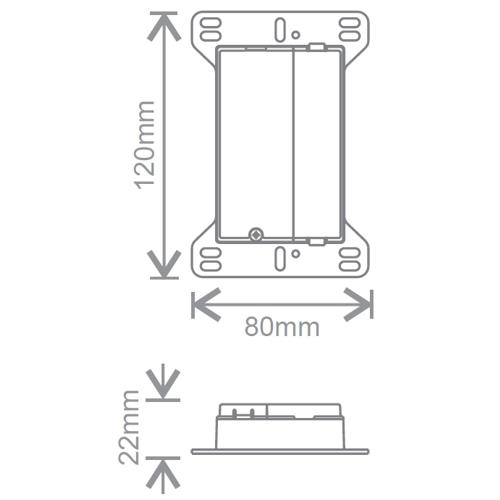

Length (mm)

120

Height (mm)

80

Depth (mm)

22

Maximum Case Temperature (°C)

75

Ambient Temperature (°C)

-10 to 45

Battery Code

KBAT2200LI1

Battery Voltage (V)

3.7

Battery Capacity (mAh)

2200

Battery Type

Li-Ion

Battery Charge Current (mA)

30-250

Charging Time (hrs)

12

Barcode

5060063423500

Box Quantity

25
