The KTC-SMD range is perfect for home, office and hospitality settings with all the environmental and financial benefits of LED technology. A direct retrofit for standard halogen GU10 lamps, the SMD range provides a choice of wattages. Each SMD lamp blends into decorative fittings with a stylish lamp body, while PPS Thermally Conductive Plastic provides excellent heat dissipation and electrical insulation making them the ideal choice for many installations.

Save energy up to 90% compared with halogen lamp.

Direct replacement of halogen GU10 lamp.

60° beam angles.

High lumen output.

Long life of 30,000h.

Instant start.

Negligible UV output.

Mercury free.

Switch off supply before installing or removing lamp. Allow to cool before handling.

Do not use in totally enclosed fittings as this may reduce lamp life.

Do not dispose of in household waste.

Dispose of in appropriate section of local civic amenity site or recycling centre.

Fitting

GU10

Shape / Type

PAR16

Colour Finish

Silver

Materials

PPS Thermally Conductive Plastic

Optics Type

Reflector

Wattage (w)

5

Equivalent Wattage (w)

46

Useful Lumens (lm)

310

Total Lumens (lm)

470

Input Current (mA)

40

Input Voltage

220-240Vac

Rated Lifetime (hrs)

30000

Nominal Lifetime (hrs)

30000

Switch Cycles

50000

Peak Candelas (cd)

300

Beam Angle (°)

60

Dimmable

No

Retrofit

Yes

Suitable for Accent Lighting

Yes

Power Factor

0.54

Start Time (s)

0.4

Warm-up Time (s)

Instant full light

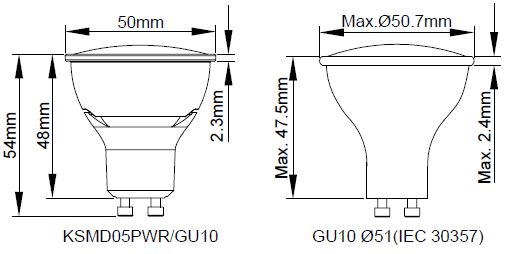

Length (mm)

54

Width (mm)

50

Depth (mm)

50

Mercury (mg)

0

Clean-up instructions

N/A

Rated Power (W)

5.0

LMF at Lifetime

0.75

SDCM of CCT

<6

Ambient Temperature (°C)

-20 to 40

Manufacturer

Kosnic

Volts (V)

220-240Vac 50-60Hz

Nominal Watts (W)

5

Current (mA)

40

Nominal Useful Luminous Flux (lm)

310

Beam Angle (°)

60

CE Mark

Yes

WEEE Mark

Yes

Batch Code

Yes

Manufacturer

Kosnic

Energy Class

A+

Energy Consumption (kWh/1000h)

5
