KMRC4030L2A/SCT
Kurve 2 LED panel Watt/CCT switchable 40/30W
Trade Price
POA
Per
1
Unit
Each
Pack Quantity
1
Information

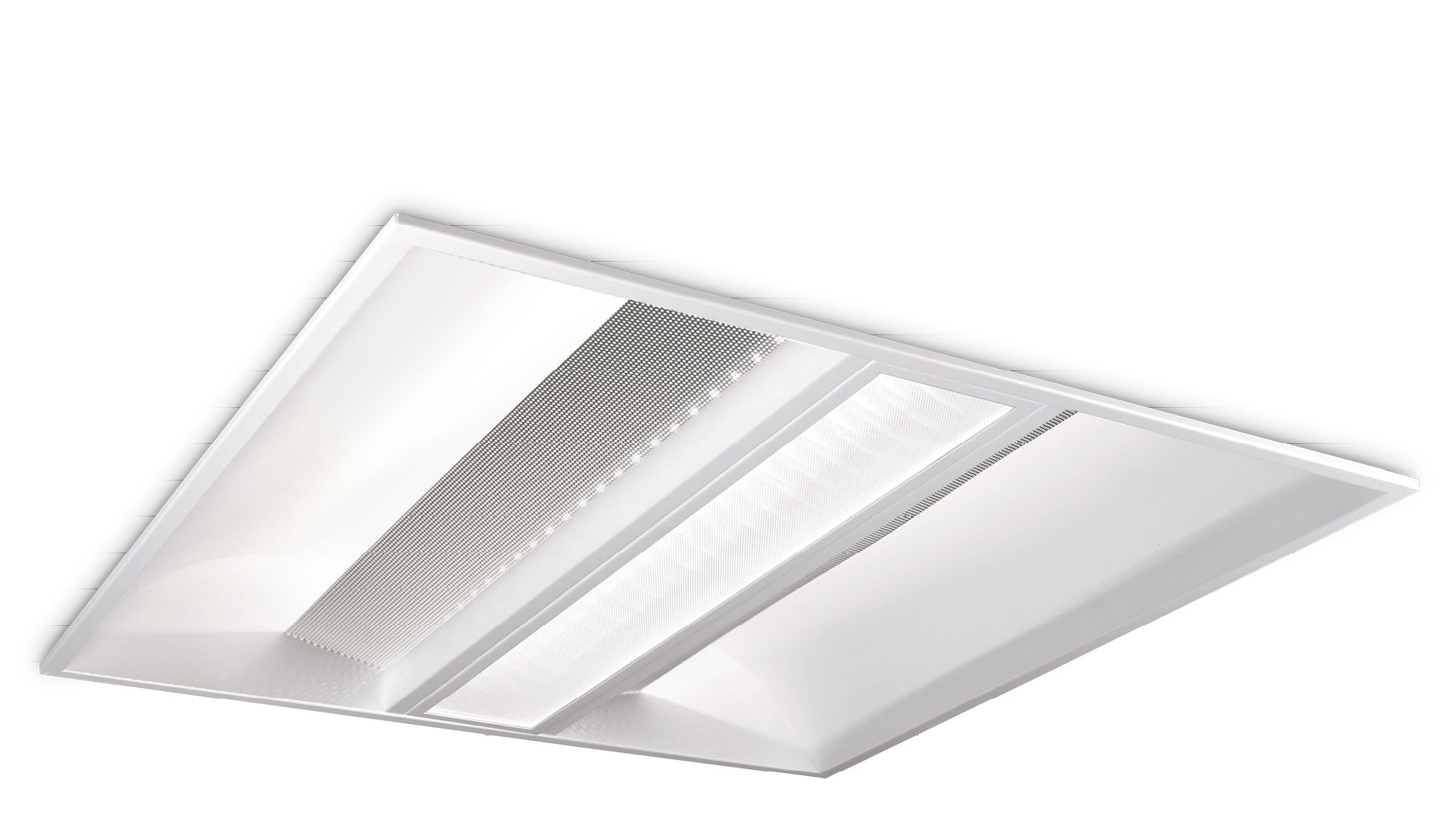

The Kurve luminaire is an easy-to-install retrofit for standard ceiling tile fittings. The Kurve has switchable CCT and power options, is suitable for standard exposed ďTĒ ceiling systems and ideal for commercial and retail premises, offering aesthetically pleasing curved zinc coated steel finish and acrylic diffuser. Flicker free Ultra-low glare Optional DALI, 1-10V (0-10V) driver Colour temperature switchable 3000K/4000K/5000K Wattage switchable Stylish & elegant aesthetic appearance
Technical Specifications
Input Voltage Supply
220-240Vac 50/60Hz
Lumens Output Maximum (lm)
3,600
CCT (K)
4,000
CCT Words
Cool White
Ambient Temperature Range (°C)
-20°C to 50°C
Blue Light Hazard
RG1
Default Setting
4000K at 40W

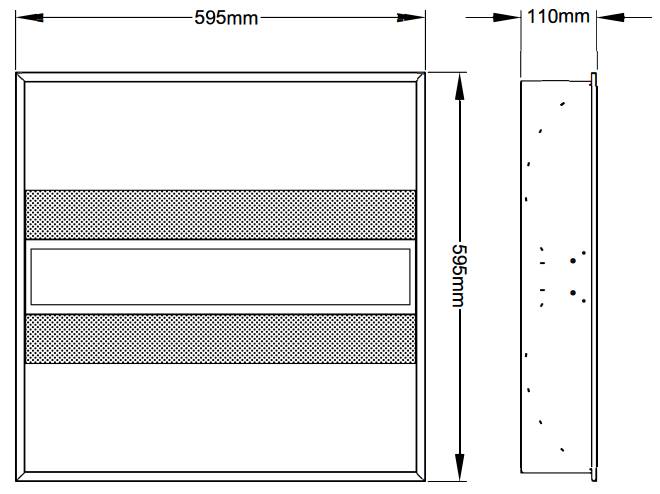

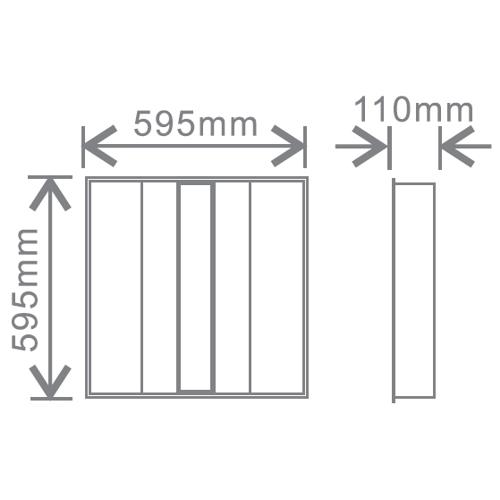

Dimensions (L x W x D) (mm)
595x595x110
Glow wire temperature(°C)
650
IK Rating
IK04
Inrush Current (peak/duration) (A)
7.5A/70µs
Installation Area
Internal
L70B50 Lifetime (h) @Ta 25 °C
54,000
L80B10 Lifetime (h) @Ta 25 °C
54,000
L90 Lifetime (h) @Ta 25 °C
30,000
Light Source Supply
36Vdc 950mA
Nominal Lifetime (h) @Ta 25 °C
50,000
Protection Rating
Class III
Rated Power (W)
40
UGR
<17
Weight
5.05Kg
IP Rating
IP20

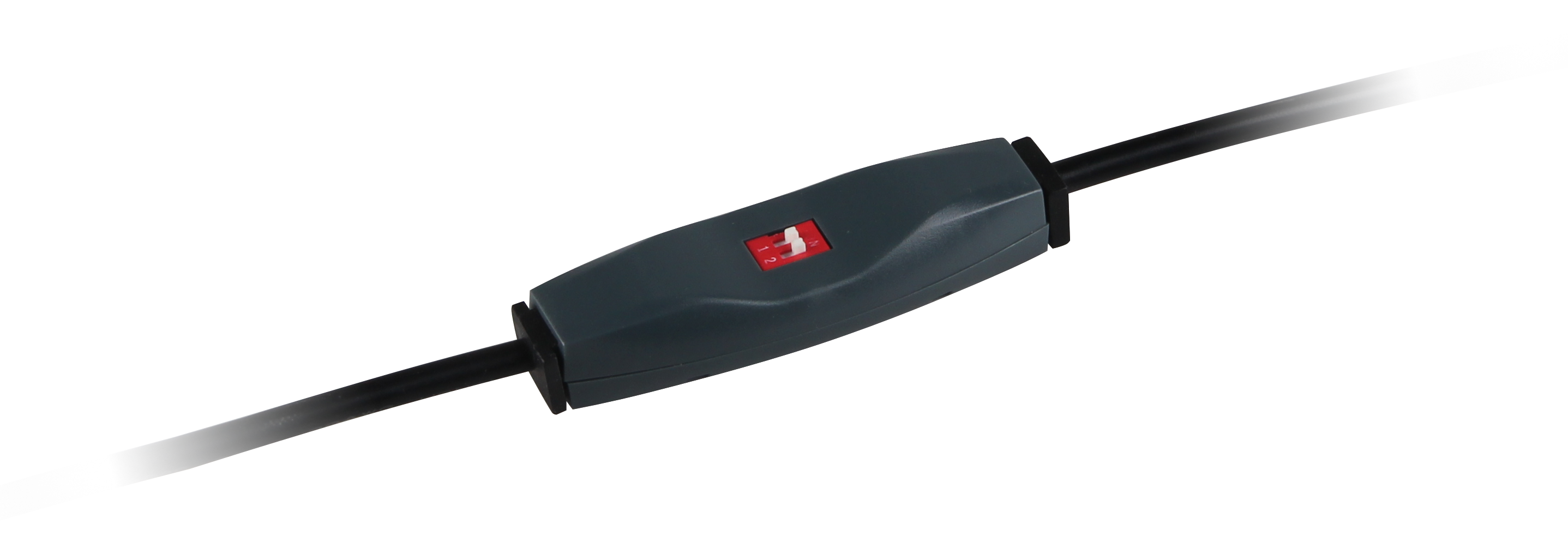

User Settable Wattages
30W, 40W
User Settable Colour Temperature
3000k, 4000k, 5000k
Maximum Wattage
40
Driver Code/Part number
DR40C7095
Driver Dimensions (L x W x D) (mm)
140x45x30
Driver Input Voltage
220-240Vac 50/60Hz
Driver Maximum Case Temperature (°C)
75
Driver Maximum Input Current (mA)
160
Driver Maximum Power (W)
40
Driver Protection Rating
Class II
Driver Power Factor
0.9
Driver Maximum Ripple Current (%)
5%
Driver Output Voltage (Vdc)
27-42
Driver Output Current (mA)
700/950
UME/EME Emergency Luminous Flux (lm)
380
Document Links
Datasheet
Features
Stylish & elegant aesthetic appearance
Flicker free
Ultra-low glare, UGR<17.4
Optional DALI, 1-10V driver
Colour temperature switchable 3000K/4000K/5000K
Specifications
Barcode
5060063426990
