The Cyaniris Microwave Presence Sensor for LED Panels is a simple energy-saving solution that uses light only when and where you need it. The sensor automatically switches the panel on and off and may be fitted to a selection of Kosnic LED panels. The sensor has a high sensitivity that will detect very small movements and stay illuminated for the duration of the hold time after presence ends. The sensor also has a built in light sensor which can be used to prevent the panel from switching on above a set light threshold.

Automatic switching based on presence and ambient light sensing

Easy to install on Kosnic LED panel

Ideal for office and classroom environments

Sensor is hidden from view

Saves more energy

Shape / Type

Input Voltage

220-240Vac

IP Rating

IP20

Class Protection

Class II

Wiring Terminals

Press fit terminals (0.75-1.5mm²)

Transmitting Power (W)

< 0.5

Power Consumption (W)

<= 0.5 (standby), < 1 (operation)

Rated Load (W)

400 (Inductive)

Operating Temperature (°C)

-30 to 70

Daylight Sensor

150lux / 250lux / 1500lux / Disable

Detection Angle (°)

150

Detection Zone

8m x 3m (D x H)

Hold Time

10s / 3min / 5min / 10min / 15min / 30min

Barcode

5060063423814

Outer Box Length (mm)

450

Outer Box Width (mm)

370

Outer Box Height (mm)

420

Volume

0.06993

Box Quantity

100

Outer Box Weight (kg)

20

Before commencing installation, turn off and isolate the circuit to be worked on by removing the fuse or switching the circuit breaker off at the distribution board.

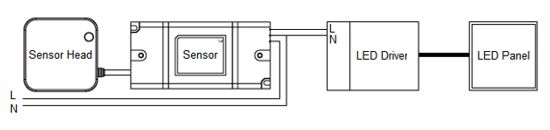

The mains supply should be connected to the input terminals as follows: Blue = Neutral (N), Brown = Live (L)

Connect the panel driver across the Load terminals: Blue = Neutral (N), Brown = Live (L Control)

Plug the sensor head into the sensor next to the DIP switches.

Peel the sticker off the back of the panel that covers the hole for the sensor.

Remove the panel screw adjacent to the hole, unfold the hinged part of the sensor and use the screw to secure in position.

Set the DIP switches for the Hold Time and Daylight Sensor as required.

Reconnect the power supply.
