ARN2FS12-W65
Arno, slim integrated batten, 2ft single output 12W 6500K
Trade Price
POA
Per
1
Unit
Each
Pack Quantity
1
Information
The Kosnic Arno Slimline Integrated Battens utilize high performance LEDs to offer outstanding lumen efficiency within a very economic package. The battens are a low-profile design suitable for a wide range of general lighting applications from commercial premises to warehouses, factories and garages. 2 ranges for replacement of single and twin T8 battens Supplied with long lead of 2/3 length of the luminaire High efficiency of 110lm/W
Technical Specifications
Input Voltage Supply
220-240Vac 50/60Hz
Lumens Output Maximum (lm)
1,320
CCT (K)
6,500
CCT Words
Day Light
Ambient Temperature Range (°C)
-20°C to 50°C
Blue Light Hazard
RG1

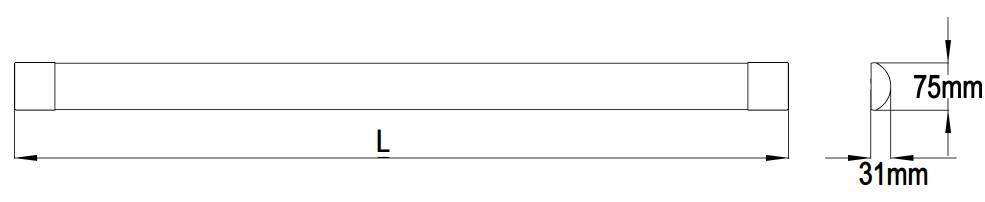

Dimensions (L x W x D) (mm)
645x75x31
Glow wire temperature(°C)
850
IK Rating
IK04
Inrush Current (peak/duration) (A)
25A/110µs
Installation Area
Internal
L70B50 Lifetime (h) @Ta 25 °C
60,000
L80B10 Lifetime (h) @Ta 25 °C
50,000
L90 Lifetime (h) @Ta 25 °C
40,000
Maximum Current Draw (mA)
57
Nominal Lifetime (h) @Ta 25 °C
50,000
Protection Rating
Class II
Rated Power (W)
12
Weight
0.25Kg
IP Rating
IP20
Power Factor
0.92
Maximum Wattage
12
Maximum Efficiency (lm/W)
110
Document Links
Datasheet
