400815-BL
FL150 Floodlight 10W Black PIR
Trade Price
£27.97
Per
1
Unit
EACH
Pack Quantity
1
Document Links
Datasheet
Product Information
Product Group
FL150
Description
FL150 Floodlight 10W Black PIR
Product Name
PIR Floodlight
Product Colour
Black
Warranty
2 Years
General Information
IP Rating
IP44
Operating Temperature
-20°C - +40°C
Beam Angle
100 Degree
Body Material
Diecast Alumimium
Diffuser Material
Toughened Glass
Mounting Type
Wall Mount Only
LED Information
LED Type
COB
Lumen Output +/- 10%
953lm
Lumens Per Circuit Watt
81Lm/W
LED Lifetime L70
30,000 Hours
CCT
4000K
CRI
>65
Electrical Information
Circuit Wattage
11.7W
Class
Class I
Connection Type
Flying Lead
Cable Length
1m H05RN-F 3 core
Driver Information
Input Voltage
200 - 240V AC
Input Current
0.050 A
Operating Frequency
50 - 60Hz
Power Factor
>0.90
Sensor Information
Sensor Type
PIR
Hold Time
10 seconds - 8 mins
Detection Area
2m - 8m
Daylight Sensor
2 - 2000lux Adjustable
Detection Radius
120 Degrees
Shipping Information
Product Weight
0.785Kg
Qty Per Outer Carton
20
Packaged Weight ea.
0.826Kg
Barcode
5055379504548
Certification
Manufactured in Accordance to
BS EN 60598-1
CE Marked
Yes

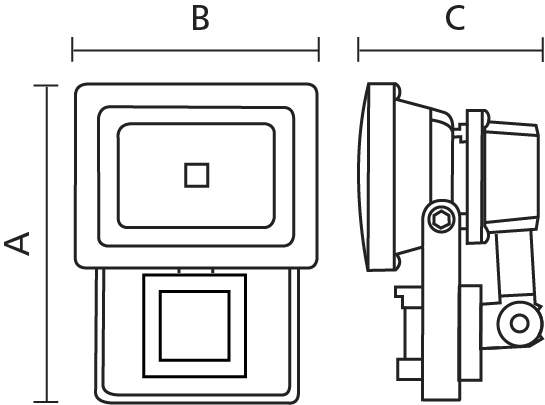

Product Dimensions
(A)
166mm
(B)
114mm
(C)
82mm
