Finish

Matt White - Polycarbonate Base / Pmma Cover

Product Weight

0.80kg

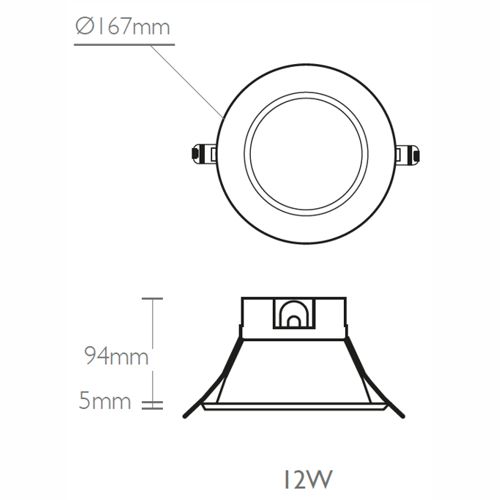

Overall Dimensions

167mm X 94mm - 155mm Cut-out

Carton Weight / Material

1.2 kg / Cardboard

Packaging Sizes / Packed Weight

Length 240mm, Height 100mm, Width 160mm

Packaging & Labelling Guidelines

Saturn LED.eu - Generic labelling

Bar Coding

Saturn LED coding in accordance with EAN-12 & ITF-14

IP Rating

IP20

Energy Rating

A* - (Very Low Energy)

Rated Wattage

12W

Lumens

1200

Lumens Per Watt

100

Recommended Product Location

Indoor Commercial Lighting

Light Source Brand

Samsung LED Chips

Colour Temperature

4000K

CRI Ra

Ra > 80 - UGR22

Lifespan

50,000 Hours

Lamp Working Temperature

<50°C

Beam Angle

90°

Photometric Data

Visit www.saturnled.eu for full Photometric files

Lamp Code

N/A

Voltage

220-240V. 50 / 60Hz. AC.

Running Current (I)

105mA

Total Running Wattage (W)

12W

Electrical Classification

Class I

Power Factor Correction (PFC)

0.9

Cabling Electrical Connections

Screw fix in terminal block

LED Driver

Input: 220-240V; output voltage: 85-110V;

Battery

Test

Battery Sizes

Test

Distance from Illuminated Object

0.5m

Light Throw Distance

Test

Method of Fix

Recessed in ceiling aperture. Front face adjustable side clips.

Recommended Working Temperature

Minimum Temp -10°C to Maximum Temp + 40°C

Instruction Sheet

Supplied with product

Country of Manufacture

Designed & tested in Europe - Manufactured in China

Intended Market

Europe, Middle East & Australia 220 - 240Volt

Main Housing Material

Aluminium and Polycarbonate

Fixings Main Housing

Steel screws

Front Shield

Frosted PC diffuser

Warranty

5 Year Warranty - For more information go to www.saturnled.eu/warranty

Marks & Symbols

CE -- SELV -- RoHS -- EMC -- WEEE

Quality Assurance System

SaturnLED quality assurance to ISO9001:2008

Certificate of Conformity

Available on request - technical@saturnled.eu

Manufactured in Accordance to

British Standard - BS EN 60598 - 2 - 1
