Finish

Black Die Cast Aluminium

Product Weight

4.6kg

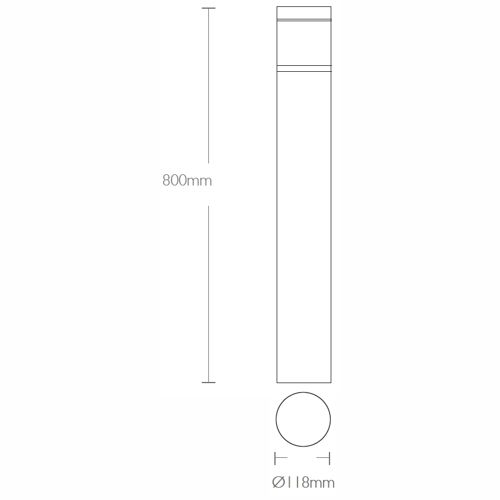

Overall Dimensions

800mm x ø118mm

Carton Weight / Material

3.48 kg / Cardboard

Packaging Sizes / Packed Weight

Length 330mm, Height 115mm, Width 110mm

Packaging & Labelling Guidelines

Saturn LED.eu - Generic labelling

Bar Coding

Saturn LED coding in accordance with EAN-12 & ITF-14

IP Rating

IP65

IK Rating

IK09

Energy Rating

A* - (Very Low Energy)

Rated Wattage

12W

Lumens

800

Lumens Per Watt

6

Recommended Product Location

Exterior Garden Lighting

Light Source Brand

Epistar LED Chips

Colour Temperature

4000K

CRI Ra

Ra > 70

Lifespan

50,000 Hours

Lamp Working Temperature

<50°C

Beam Angle

360° X 80° asymmetric

Photometric Data

Visit www.saturnled.eu for full Photometric files

Lamp Code

N/A

Voltage

220-240V. 50 / 60Hz. AC.

Running Current (I)

0.35

Total Running Wattage (W)

12

Electrical Classification

Class I

Power Factor Correction (PFC)

>0.5

Cabling Electrical Connections

Screw fix in terminal block

Battery

Test

Battery Sizes

Test

Distance from Illuminated Object

0.5m

Light Throw Distance

Test

Method of Fix

Surface mounted on a suitable substrate./ Root Kit

Recommended Working Temperature

Minimum Temp -10°C to Maximum Temp + 40°C

Instruction Sheet

Supplied with product

Country of Manufacture

Designed & tested in Europe - Manufactured in China

Intended Market

Europe, Middle East & Australia 220 - 240Volt

Main Housing Material

Fixings Main Housing

Warranty

3 Year Warranty - For more information go to www.saturnled.eu/warranty

Marks & Symbols

CE -- SELV -- RoHS -- EMC -- WEEE

Quality Assurance System

SaturnLED quality assurance to ISO9001:2008

Certificate of Conformity

Available on request - technical@saturnled.eu

Manufactured in Accordance to

British Standard - BS EN 60598 - 2 - 1
