AXIS/GU10/WH
Axis GU10 IP65 Fire Rated Downlight
Trade Price
£10.84
Per
1
Unit
EACH
Pack Quantity
1
Document Links
Datasheet
General Details
Finish
Diecast Body c/w Interchangeable Trims

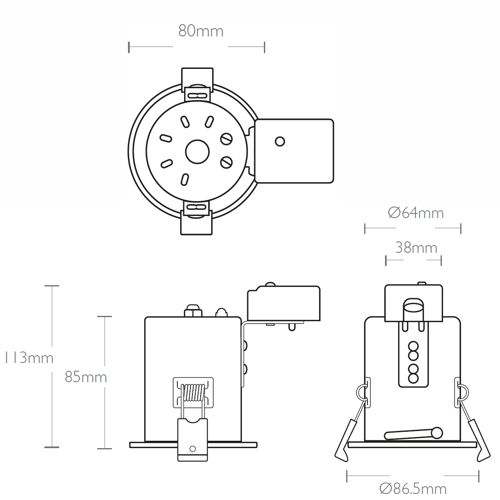

Overall Dimensions
113mm x 80mm x 86.5mm x 38mm
Carton Weight / Material
2.00 kg / Cardboard
Packaging & Labelling Guidelines
Saturn LED.eu - Generic labelling
Bar Coding
Saturn LED coding in accordance with EAN-12 & ITF-14
IP Rating
Energy Rating
A* - (Very Low Energy)
Light Source
Lamp Working Temperature
<50°C
Beam Angle
90°
Photometric Data
Visit www.saturnled.eu for full Photometric files
Lamp Code
N/A
Electrical
Battery
Test
Battery Sizes
Test
Installation
Distance from Illuminated Object
0.5m
Light Throw Distance
Test
Method of Fix
Instruction Sheet
Supplied with product
Origin & Markets
Country of Manufacture
Designed & tested in Europe - Manufactured in China
Intended Market
Europe, Middle East & Australia 220 - 240Volt
Approvals
Warranty
Quality Assurance System
SaturnLED quality assurance to ISO9001:2008
Certificate of Conformity
Available on request - technical@saturnled.eu
Manufactured in Accordance to
British Standard - BS EN 60598 - 2 - 1
