ICE30/B/MWS
Ice 30W 5000K IP65 Slimline LED Floodlight with Microwave Sensor Black
Trade Price
£0.00
Per
1
Unit
EACH
Pack Quantity
1
Document Links
Datasheet
General Details
Finish
Diecast White Frame c/w Toughened Glass Front
Product Weight
2.1kg

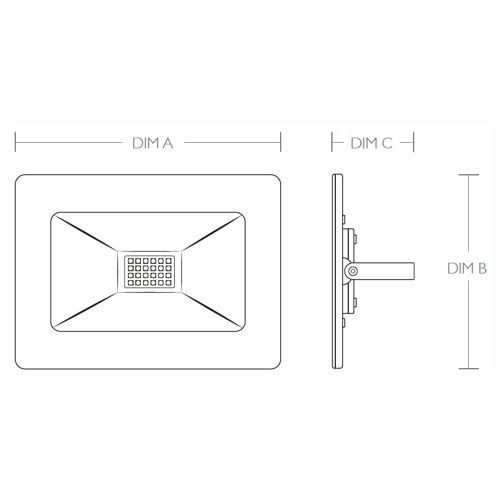

Overall Dimensions
203mm x 178mm x 103mm
Carton Weight / Material
2.0 kg / Cardboard
Packaging Sizes / Packed Weight
Length 185mm, Height 200mm, Width 85mm
Packaging & Labelling Guidelines
Saturn LED.eu - Generic labelling
Bar Coding
Saturn LED coding in accordance with EAN-12 & ITF-14
IP Rating
IP65
Energy Rating
A* - (Very Low Energy)
Sensor
MWS
Light Source
Rated Wattage
30W
Lumens
2400
Lumens Per Watt
80
Recommended Product Location
Exterior Flood Lighting
Light Source Brand
Branded LED Chips
Colour Temperature
5000K
CRI Ra
Ra > 70
Lifespan
30,000 Hours
Lamp Working Temperature
<50°C
Beam Angle
120°
Photometric Data
Visit www.saturnled.eu for full Photometric files
Lamp Code
N/A
Electrical
Voltage
220-240V. 50 / 60Hz. AC.
Electrical Classification
Class I
Cabling Electrical Connections
Screw fix in terminal block
Battery
Test
Battery Sizes
Test
Installation
Distance from Illuminated Object
0.5m
Light Throw Distance
Test
Method of Fix
Surface mounted on a suitable substrate.
Recommended Working Temperature
Minimum Temp -10°C to Maximum Temp + 40°C
Instruction Sheet
Supplied with product
Origin & Markets
Country of Manufacture
Designed & tested in Europe - Manufactured in China
Intended Market
Europe, Middle East & Australia 220 - 240Volt
Materials
Main Housing Material
Approvals
Warranty
3 Year Warranty - For more information go to www.saturnled.eu/warranty
Marks & Symbols
CE -- SELV -- RoHS -- EMC -- WEEE
Quality Assurance System
SaturnLED quality assurance to ISO9001:2008
Certificate of Conformity
Available on request - technical@saturnled.eu
Manufactured in Accordance to
British Standard - BS EN 60598 - 2 - 1
