Finish

Metal Base c/w Polycarbonate Diffuser

Product Weight

6.5kg

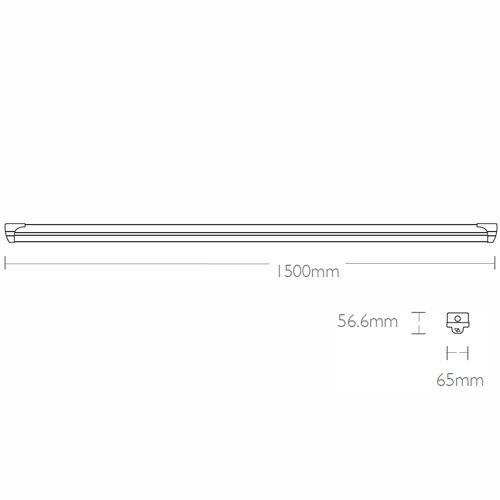

Overall Dimensions

1500mm X 120mm X 100mm

Carton Weight / Material

3.90 kg / Cardboard

Packaging & Labelling Guidelines

Saturn LED.eu - Generic labelling

Bar Coding

Saturn LED coding in accordance with EAN-12 & ITF-14

IP Rating

IP20

Energy Rating

A* - (Very Low Energy)

Rated Wattage

66W

Lumens

6600

Lumens Per Watt

100

Recommended Product Location

Indoor School / Office Lighting

Light Source Brand

Epistar LED Chips

Colour Temperature

4000K

CRI Ra

Ra > 80

Lifespan

50,000 Hours

Lamp Working Temperature

<50°C

Beam Angle

140°

Photometric Data

Visit www.saturnled.eu for full Photometric files

Emergency Duration

3 Hours

Lamp Code

N/A

Voltage

220-240V. 50 / 60Hz. AC.

Total Running Wattage (W)

67W

Electrical Classification

Class I

Power Factor Correction (PFC)

0.9

Cabling Electrical Connections

Screw fix in terminal block

LED Driver

Pri: 240V ac. Sec: 700mA Max DC 50V

Battery

Test

Battery Sizes

Test

Recharge Period

24 hours

Distance from Illuminated Object

0.5m

Light Throw Distance

Test

Method of Fix

Surface mounted on a suitable substrate.

Recommended Working Temperature

Minimum Temp -10°C to Maximum Temp + 40°C

Instruction Sheet

Supplied with product

Country of Manufacture

Designed & tested in Europe - Manufactured in China

Intended Market

Europe, Middle East & Australia 220 - 240Volt

Main Housing Material

Fixings Main Housing

Steel Screws and Plastic Rivets

Front Shield

Polycarbonate Diffuser

Warranty

5 Year Warranty - For more information go to www.saturnled.eu/warranty

Marks & Symbols

CE -- SELV -- RoHS -- EMC -- WEEE

Quality Assurance System

SaturnLED quality assurance to ISO9001:2008

Certificate of Conformity

Available on request - technical@saturnled.eu

Manufactured in Accordance to

British Standard - BS EN 60598 - 2 - 1
