Finish

Metal Base c/w Polycarbonate Diffuser

Product Weight

7.7kg

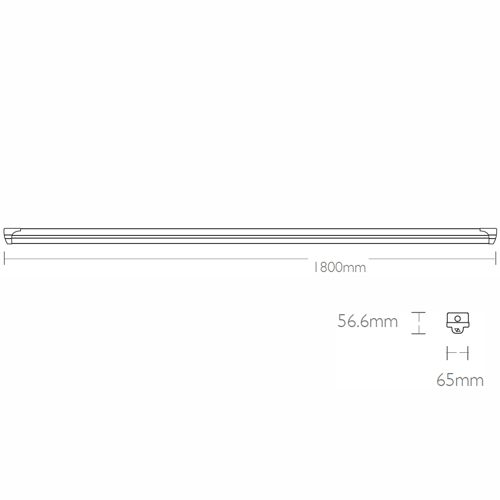

Overall Dimensions

1800mm X 120mm X 100mm

Carton Weight / Material

4.20 kg / Cardboard

Packaging & Labelling Guidelines

Saturn LED.eu - Generic labelling

Bar Coding

Saturn LED coding in accordance with EAN-12 & ITF-14

IP Rating

IP20

Energy Rating

A* - (Very Low Energy)

Rated Wattage

80W

Lumens

8000

Lumens Per Watt

100

Recommended Product Location

Indoor School / Office Lighting

Light Source Brand

Epistar LED Chips

Colour Temperature

4000K

CRI Ra

Ra > 80

Lifespan

50,000 Hours

Lamp Working Temperature

<50°C

Beam Angle

140°

Photometric Data

Visit www.saturnled.eu for full Photometric files

Lamp Code

N/A

Voltage

220-240V. 50 / 60Hz. AC.

Running Current (I)

Total Running Wattage (W)

83w

Electrical Classification

Class II. (Double Insulated LED Driver). SELV

Power Factor Correction (PFC)

0.9

Cabling Electrical Connections

Screw fix in terminal block

LED Driver

Pri: 240V ac. Sec: 1050mA Max DC 48V

Battery

Test

Battery Sizes

Test

Distance from Illuminated Object

0.5m

Light Throw Distance

Test

Method of Fix

Surface mounted on a suitable substrate.

Recommended Working Temperature

Minimum Temp -10°C to Maximum Temp + 40°C

Instruction Sheet

Supplied with product

Country of Manufacture

Designed & tested in Europe - Manufactured in China

Intended Market

Europe, Middle East & Australia 220 - 240Volt

Main Housing Material

Fixings Main Housing

Steel Screws and Plastic Rivets

Front Shield

Polycarbonate Diffuser

Warranty

5 Year Warranty - For more information go to www.saturnled.eu/warranty

Marks & Symbols

CE -- SELV -- RoHS -- EMC -- WEEE

Quality Assurance System

SaturnLED quality assurance to ISO9001:2008

Certificate of Conformity

Available on request - technical@saturnled.eu

Manufactured in Accordance to

British Standard - BS EN 60598 - 2 - 1
