Finish

PCB And LED IP67 Tape

Product Weight

0.36kg

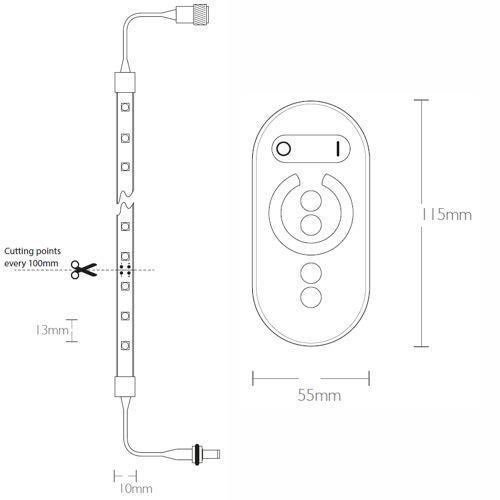

Overall Dimensions

10mm x 5000mm

Carton Weight / Material

1.0 kg / Cardboard

Packaging Sizes / Packed Weight

Length 245mm, Height 110mm, Width 100mm

Packaging & Labelling Guidelines

Saturn LED.eu - Generic labelling

Bar Coding

Saturn LED coding in accordance with EAN-12 & ITF-14

IP Rating

IP67

Energy Rating

A* - (Very Low Energy)

Rated Wattage

4.8W/M

Lumens

288/m

Lumens Per Watt

60

Recommended Product Location

Interior / Exterior Mood Effect Lighting

Light Source Brand

Epistar LED Chips

Colour Temperature

4000K

CRI Ra

Ra > 80

Lifespan

30,000 Hours

Lamp Working Temperature

<50°C

Beam Angle

120°

Photometric Data

Visit www.saturnled.eu for full Photometric files

Lamp Code

N/A

Voltage

220-240V. 50 / 60Hz. AC.

Electrical Classification

Class II. (Double Insulated LED Driver). SELV

Cabling Electrical Connections

Screw fix in terminal block

Battery

Test

Battery Sizes

Test

Distance from Illuminated Object

0.5m

Light Throw Distance

Test

Method of Fix

3M tape, Slips and screws

Recommended Working Temperature

Minimum Temp -10°C to Maximum Temp + 40°C

Instruction Sheet

Supplied with product

Country of Manufacture

Designed & tested in Europe - Manufactured in China

Intended Market

Europe, Middle East & Australia 220 - 240Volt

Main Housing Material

Fixings Main Housing

3M tape

Front Shield

Silicon

Warranty

5 Year Warranty - For more information go to www.saturnled.eu/warranty

Marks & Symbols

CE -- SELV -- RoHS -- EMC -- WEEE

Quality Assurance System

SaturnLED quality assurance to ISO9001:2008

Certificate of Conformity

Available on request - technical@saturnled.eu

Manufactured in Accordance to

British Standard - BS EN 60598 - 2 - 1
