CYC662800
Cyclone 28W 4000K IP20 600x600mm LED Panel
Trade Price
£78.73
Per
1
Unit
EACH
Pack Quantity
1
Document Links
Datasheet
General Details
Finish
Anodised Aluminium Frame With Pmma Cover
Product Weight
2.55kg
Overall Dimensions

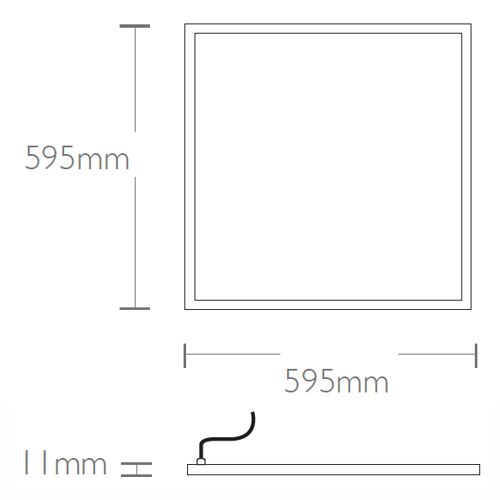

595mm X 595mm X 12mm
Carton Weight / Material
3.75 kg / Cardboard
Packaging & Labelling Guidelines
Saturn LED.eu - Generic labelling
Bar Coding
Saturn LED coding in accordance with EAN-12 & ITF-14
IP Rating
IP20
Energy Rating
A* - (Very Low Energy)
Light Source
Rated Wattage
28W
Lumens
2800
Lumens Per Watt
100
Recommended Product Location
Indoor Commercial Lighting
Light Source Brand
Epistar LED Chips
Colour Temperature
4000K
CRI Ra
Ra > 80
Lifespan
50,000 Hours
Lamp Working Temperature
<50°C
Beam Angle
120°
Photometric Data
Visit www.saturnled.eu for full Photometric files
Lamp Code
N/A
Electrical
Voltage
220-240V. 50 / 60Hz. AC.
Electrical Classification
Class III
Cabling Electrical Connections
Screw fix in terminal block
Battery
Test
Battery Sizes
Test
Installation
Distance from Illuminated Object
0.5m
Light Throw Distance
Test
Method of Fix
Lay In Ceiling Grid / Suspended / Suitable Surface Mounting Kit
Recommended Working Temperature
Minimum Temp -10°C to Maximum Temp + 40°C
Instruction Sheet
Supplied with product
Origin & Markets
Country of Manufacture
Designed & tested in Europe - Manufactured in China
Intended Market
Europe, Middle East & Australia 220 - 240Volt
Materials
Main Housing Material
Anodised Aluminium Frame With Pmma Cover
Fixings Main Housing
Steel screws
Front Shield
Frosted PC diffuser
Approvals
Warranty
5 Year Warranty - For more information go to www.saturnled.eu/warranty
Marks & Symbols
CE -- SELV -- RoHS -- EMC -- WEEE
Quality Assurance System
SaturnLED quality assurance to ISO9001:2008
Certificate of Conformity
Available on request - technical@saturnled.eu
Manufactured in Accordance to
British Standard - BS EN 60598 - 2 - 1
