Range

SpaceLogic C-Bus

Product name

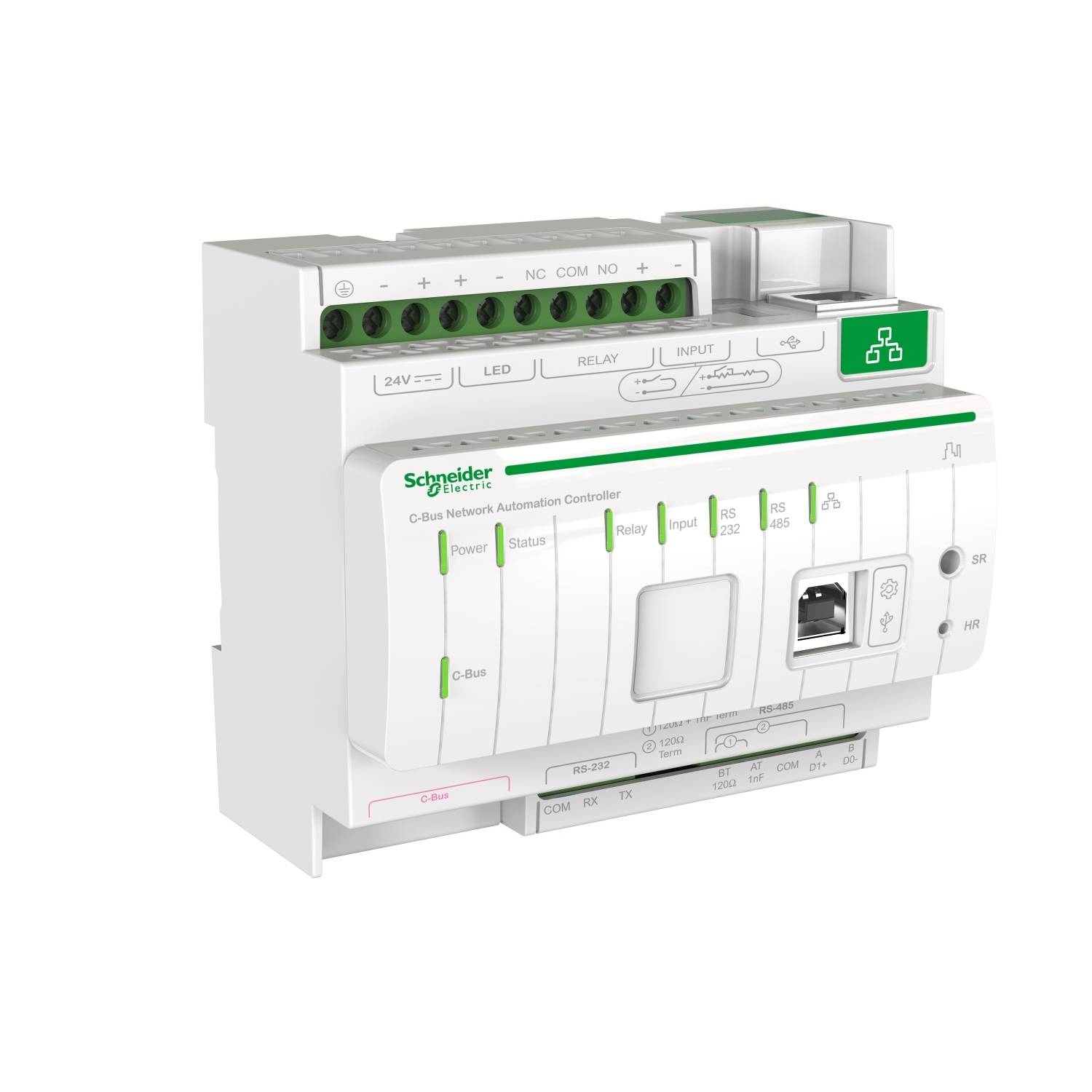

C-Bus Automation Controller

Product or component type

Logic controller

Communication port protocol

C-Bus RJ45 (2000 devices) BACnet IP RJ45 (500 devices) Modbus RTU terminal block RS485 (31 devices) IP (Internet Protocol) RJ45 Serial link terminal block RS232 Modbus TCP RJ45

[Us] rated supply voltage

24 V DC

Power consumption in W

2 W

LED indicator

LED (green/red) for power LED (green/red) for status indication LED (green) for relay output (REL) LED (multi-colour) for input status LED (multi-colour) for RS232 link activity LED (multi-colour) for serial link communication (RS485, RX, TX) LED (green) for C-Bus status LED (green/yellow) for Ethernet link

Port Ethernet

10BASE-T/100BASE-TX

Number of port

1 USB 2.0 type A 1 USB 1.1 type B 1 RS232 (serial link) 1 RS485 (Modbus) 2 RJ45 (C-Bus) 1 RJ45 (Ethernet)

Control type

Smartphone or tablet RESET push-button cold restart By web browser By touch panel Remote control Local control RESET push-button

Web services

Web server

Web server

BMS controller compatible

Function available

Updateable software Visualisation

Number of inputs

1 dry contact

Input impedance

2.2 kOhm closed 6.9 kOhm opened

Number of outputs

1 relay changeover

Output voltage

24 V DC 1 A for relay 48 V AC 1 A for relay

Connections - terminals

Power supply: screw terminal 3 cable(s) 1.5 mm² LED lamp: screw terminal 2 cable(s) 1.5 mm² Relay digital output: screw terminal 3 cable(s) 1.5 mm² Digital input: screw terminal 2 cable(s) 1.5 mm² RS232 link: screw terminal 3 cable(s) 1.5 mm² RS485 link: screw terminal 5 cable(s) 1.5 mm²

mounting support

DIN rail

Total number of 18 mm modules

6

height

108 mm

Width

93 mm

Depth

63 mm

Ambient air temperature for operation

-5…45 °C

Operating altitude

<= 2000 m

Relative humidity

10…90 %

IP degree of protection

IP20

Standards

AS/NZS CISPR 22 EN 55022 class A

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10 cm

Package 1 Width

11.1 cm

Package 1 Length

15.6 cm

Package 1 Weight

364 g

Warranty

18 months
