NSYS3D8825P
S3D H800XW800XD250+PLAIN CHASSIS
Trade Price
£288.52
Per
1
Unit
EA
Pack Quantity
1
Information

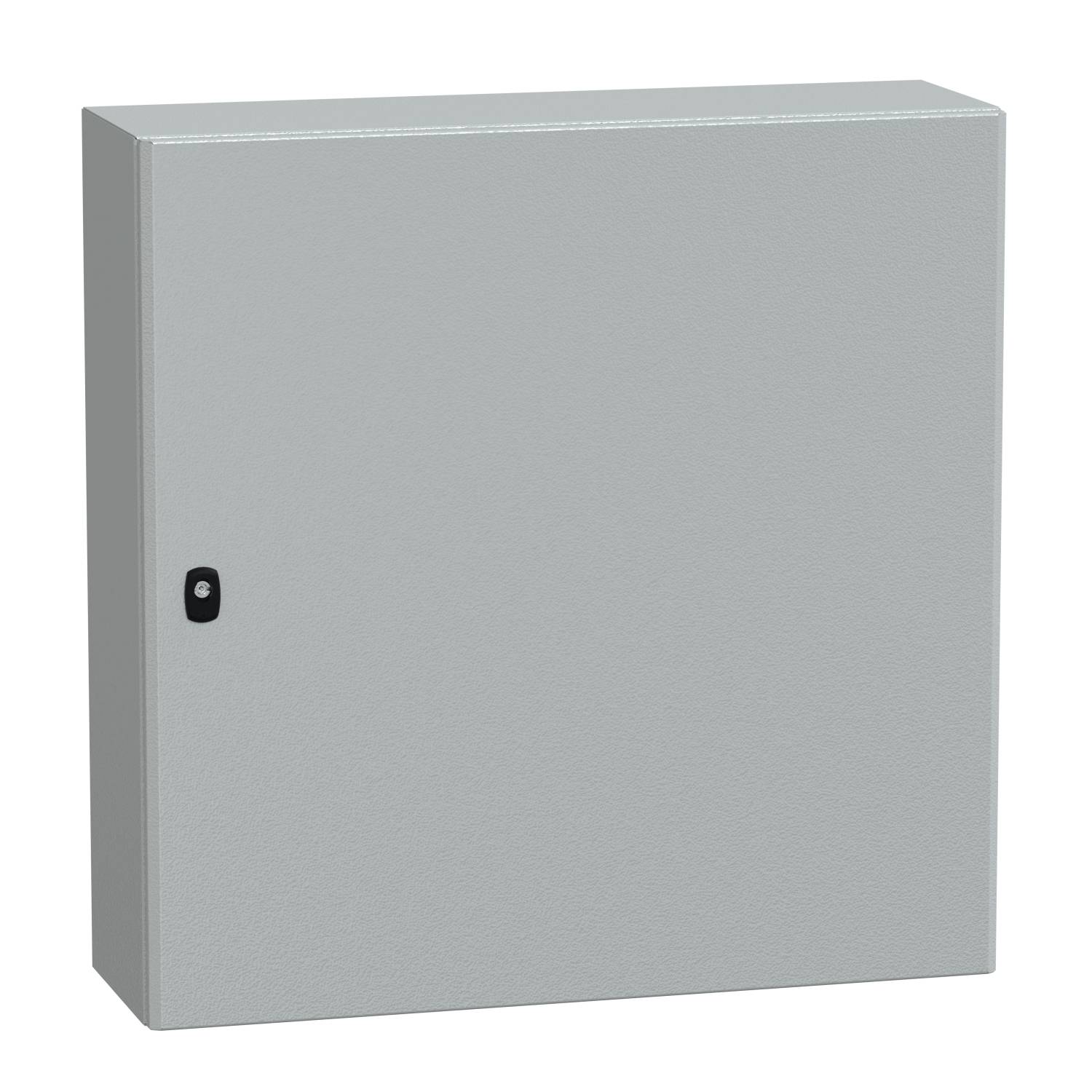

Spacial S3D wall mounted steel enclosure with plain door. 800 x 800 x 250 mm. Single piece body, mounting plate included. 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.
Technical Specifications
Range
Spacial
Product name
Spacial S3D
Application
Multi-purpose
Category
Compact enclosure
Enclosure nominal height
800 mm
Enclosure nominal width
800 mm
Enclosure nominal depth
250 mm
Door type
Plain
Mounting plate description
Plain
Type of gland plate
Standard
Installation accessory type
Wall-mounting
Device composition
1 body 2 cable gland plate 1 mounting plate 1 door with lock
body type
Single piece body Gutter-shaped front rail double sheet thickness
Number of doors
Front face: 1 door(s)
Door opening side
Reversible (120 °)
Lock type
3 points lock, 3 mm double-bar
accessibility for operation
Front
Removable parts
Door by hinges Cable gland plate by screws Mounting plate by fixing element
Material
Enclosure: steel Mounting plate: galvanised steel
Surface finish
Enclosure: epoxy-polyester powder
Colour
Enclosure: grey (RAL 7035)
Standards
IEC 62208
product certifications
cUL GL UL DNV BV LR
Net weight
40 kg
NEMA degree of protection
NEMA 4X/13
IK degree of protection
IK10 conforming to IEC 62262
IP degree of protection
IP66 conforming to IEC 60529
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
30.5 cm
Package 1 Width
82.0 cm
Package 1 Length
84.0 cm
Package 1 Weight
37.0 kg
Unit Type of Package 2
PAM
Number of Units in Package 2
8
Package 2 Height
178.0 cm
Package 2 Width
100.0 cm
Package 2 Length
120.0 cm
Package 2 Weight
309.0 kg
Warranty
18 months
