MTN649350
KNX UNIV DIM ACT REG-K230500W
Trade Price
POA
Per
1
Unit
Pack Quantity
Information

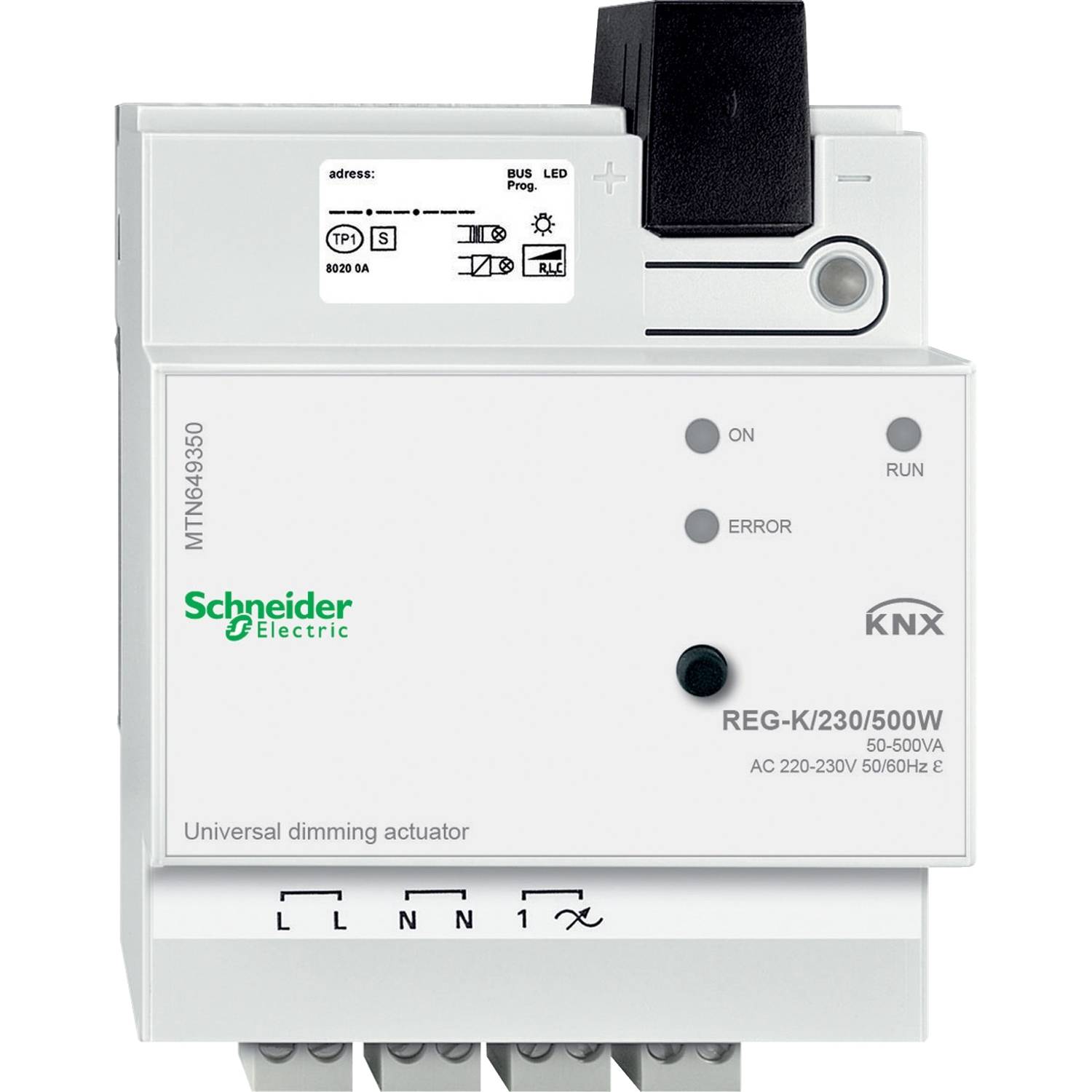

Universal dimming actuator has 1 channel 500W/VA with manual override. It has automatic load detection. the actuator can be installed for Installation on DIN rails TH35 according to EN 60715 Each output has Nominal voltage: AC 220 - 230 V, 50 - 60 Hz. Minimum load is 25 W ohmic & 50 VA ohmic/inductive/capacitive. It controls lamps such as incandescent, HV /LV halogen using dimmable wound or electronic transformers. It is able to control different dimming curves and dimming speeds, the same dimming tim. it has short-circuit, open-circuit and excess temperature protection with soft start functio. The device has 4 module width, approximately 72 mm. The color of device is light grey.
Technical Specifications
Range of produc
KNX
Product or component type
Dimming actuator
Operating mode
KNX bus system Manual
Bus type
KNX
total number of 18 mm modules
4
mounting support
DIN rail
[Ue] rated operational voltage
220...230 V
Network frequency
50...60 Hz
Input type
1 x push-button: 230 V AC 1 x electronic push-button: 230 V AC
Number of outputs
1
local signalling
LED
Load type
Incandescent lamps: 30...500 W at 230 V AC Halogen lamps: 30...500 W at 230 V AC LV halogen lamps: 50...500 VA (wound transformer) LV halogen lamps: 50...500 W (electronic transformer)
IP degree of protection
IP20
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
8.0 cm
Package 1 Width
12.4 cm
Package 1 Length
15.8 cm
Package 1 Weight
273.0 g
Unit Type of Package 2
S03
Number of Units in Package 2
10
Package 2 Height
30.0 cm
Package 2 Width
30.0 cm
Package 2 Length
40.0 cm
Package 2 Weight
3.06 kg
Warranty
18 months
