A9XMC2D3
PowerTag C 2DI 230V
Trade Price
POA
Per
1
Unit
EA
Pack Quantity
1
Information

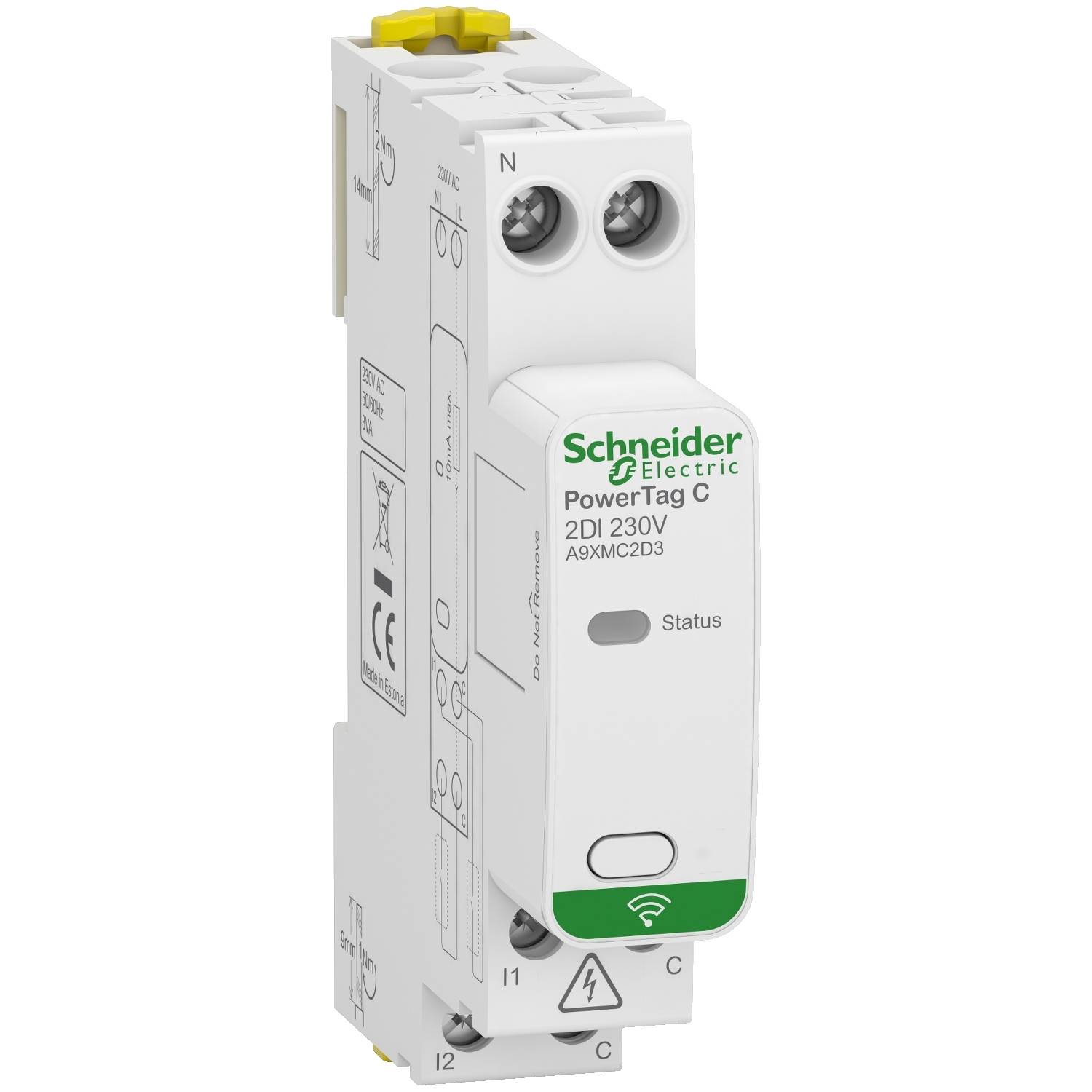

This PowerTag Control 2DI 230V is a wireless-communication input module. It is designed specifically for monitoring applications. It is designed to monitor a circuit, notifying wireless to the concentrator the information status of a contract It has to be associated with a concentrator PowerTag Link. This product can be installed in new or existing panels with simple commissioning operation. It has a status LED who provides information about PowerTag Control status. It is mounted on DIN rail and is compatible with horizontal comb busbars 9 mm modules. The Un Rated voltage is Phase-to-neutral 230VAC +/- 20%. The maximum consumption is below or equal to 3VA. The degree of protection is IP20 for casing and IP40 for front face. The operating temperature is between -25°C to +60°C. The storage temperature is between 40°C to +85°C. The dimensions are (W) 18mm x (H) 85mm x (D) 62mm. This product complies with IEC 60529 standard
Technical Specifications
Range
PowerTag
Product or component type
Input module
Device short name
PowerTag C 2DI 230V
Product name
PowerTag Control
Concentrator compatibility
Acti9 PowerTag Link Acti9 PowerTag Link HD
Range compatibility
Acti9 OF and SD double OC or fault contact
[Us] rated supply voltage
230 V AC (+/- 20 %)
Network frequency
50/60 Hz
Power consumption in VA
3 VA
Digital input number
2
Input type
Dry contact 230 V AC 2 mA
Voltage state 1 guaranteed
>= 164 V for digital input
Voltage state 0 guaranteed
<= 40 V for digital input
Current state 1 guaranteed
>= 2 mA (digital input)
Current state 0 guaranteed
<= 0.5 mA (digital input)
Mounting mode
Clip-on
mounting support
DIN rail
Local signalling
Green, orange and red LED for product status
Switching frequency
10 Hz maximum
Colour
White (RAL 9003)
9 mm pitches
2
height
85 mm
Material
PA6 GF30
Width
18 mm
Depth
62 mm
Net weight
75 g
Connections - terminals
Tunnel type terminals (top) - 1 cable(s) 1…16 mm² (AWG 18...AWG 16) - rigid Tunnel type terminals (top) - 1 cable(s) 0.5…10 mm² (AWG 21...AWG 8) - flexible Tunnel type terminals (bottom) - 1 cable(s) 1…6 mm² (AWG 18...AWG 10) - rigid Tunnel type terminals (bottom) - 1 cable(s) 0.5…4 mm² (AWG 21...AWG 12) - flexible Tunnel type terminals (bottom) - 1 cable(s) 0.5…4 mm² (AWG 21...AWG 12) - flexible with ferrule Tunnel type terminals (bottom) - 2 cable(s) 1.5…2.5 mm² (AWG 16...AWG 14) - rigid Tunnel type terminals (bottom) - 2 cable(s) 1.5…2.5 mm² (AWG 16...AWG 14) - flexible
Wire stripping length
14 mm for top connection 9 mm for bottom connection
Tightening torque
Power supply: 2 N.m top Digital input: 1 N.m bottom
Standards
ETSI EN 300 328 ETSI EN 301 489-1 EN/IEC 61326-1 ETSI EN 301 489-17 EN/IEC 61010-1 EN/IEC 62479 EN/IEC 61010-2-201
IP degree of protection
IP20 casing: conforming to IEC 60529 IP40 front face: conforming to IEC 60529
Pollution degree
3
Overvoltage category
III conforming to IEC 61010-1
IK degree of protection
IK05
Relative humidity
0…93 % at 40 °C conforming to IEC 60068-2-78
Operating altitude
0...2000 m
Ambient air temperature for operation
-25…60 °C
Ambient air temperature for storage
-40…85 °C
Fire resistance
960 °C / 30 s conforming to UL 94 V0
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.6 cm
Package 1 Width
8 cm
Package 1 Length
11.5 cm
Package 1 Weight
109 g
Unit Type of Package 2
S03
Number of Units in Package 2
80
Package 2 Height
30 cm
Package 2 Width
30 cm
Package 2 Length
40 cm
Package 2 Weight
9.15 kg
Warranty
18 months
