Range of produc

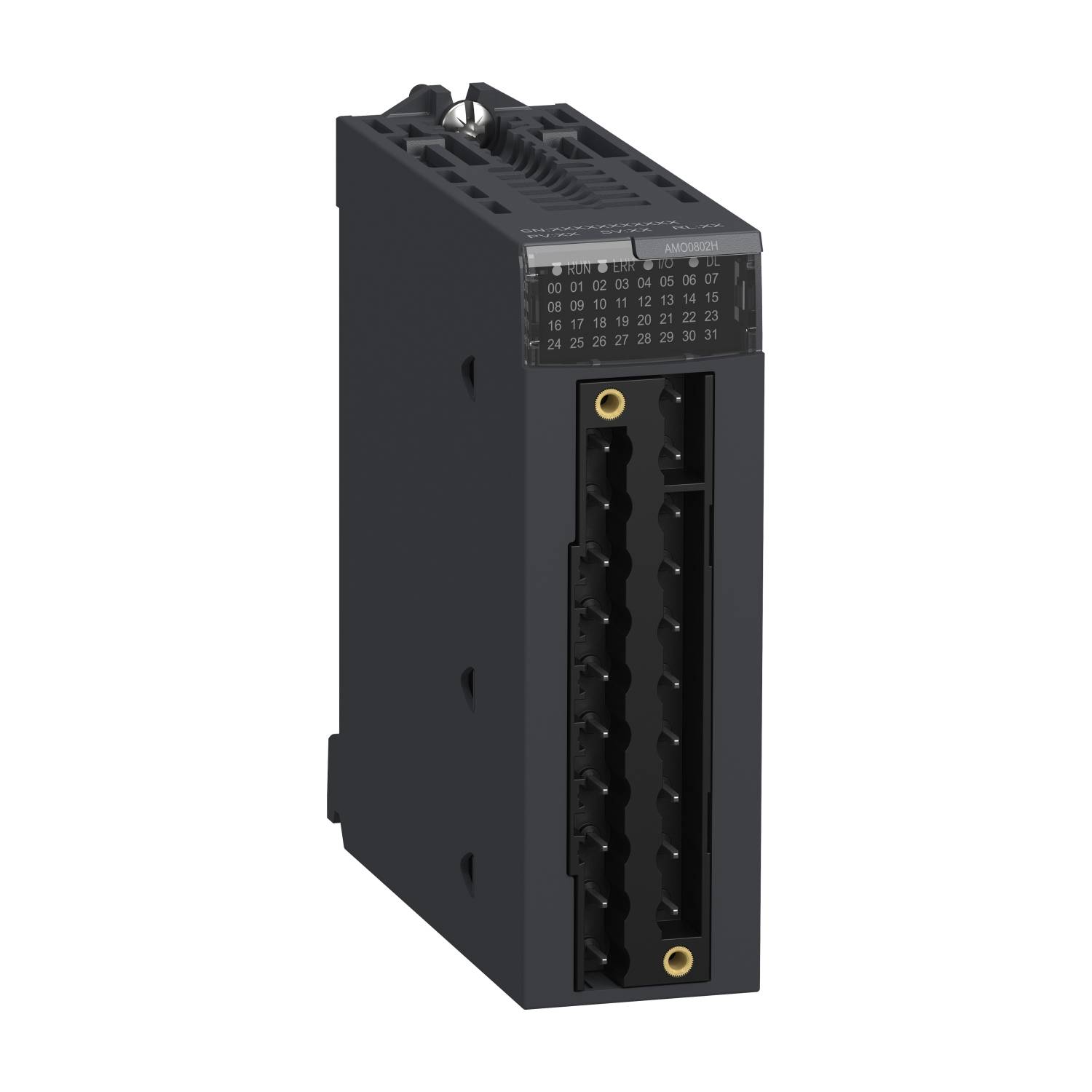

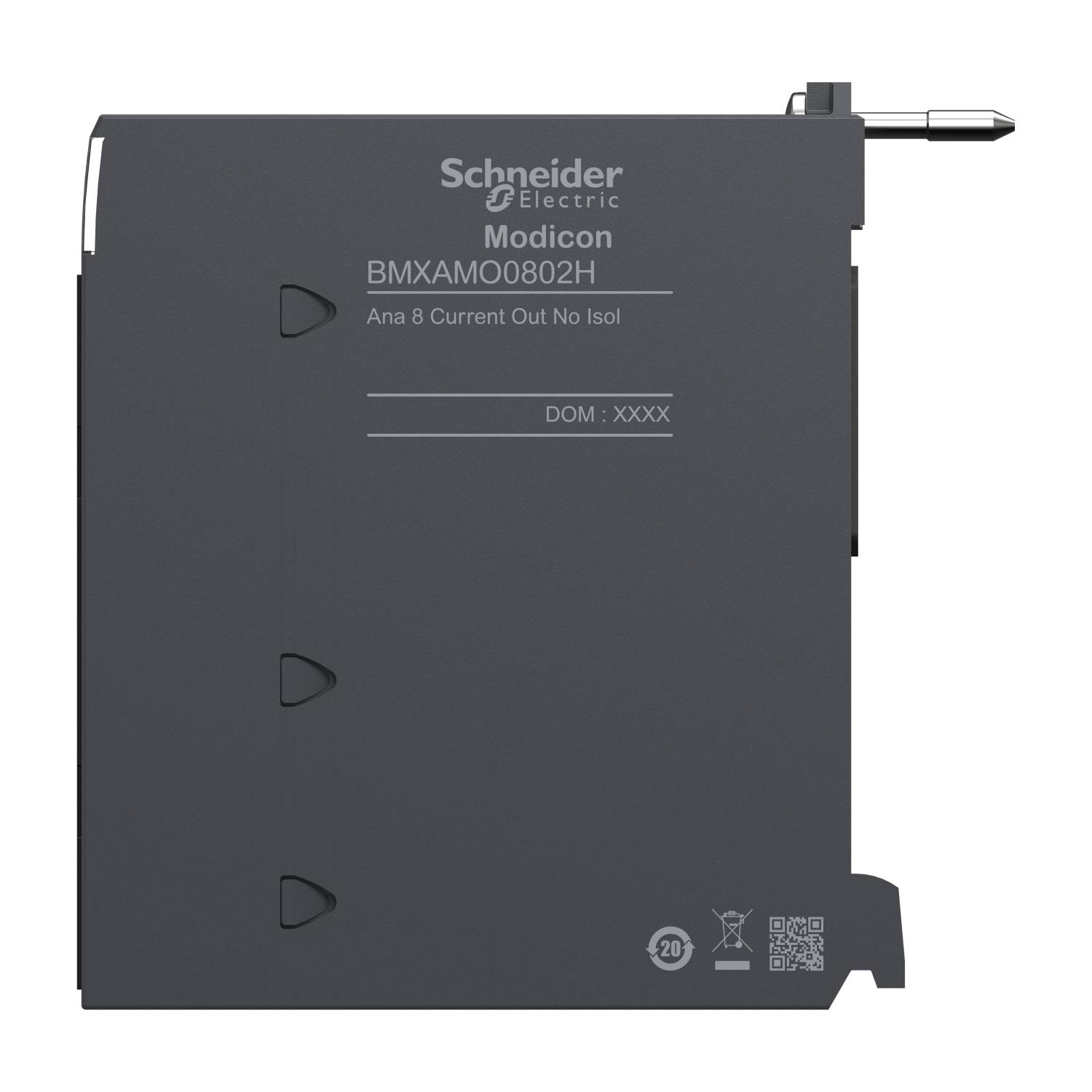

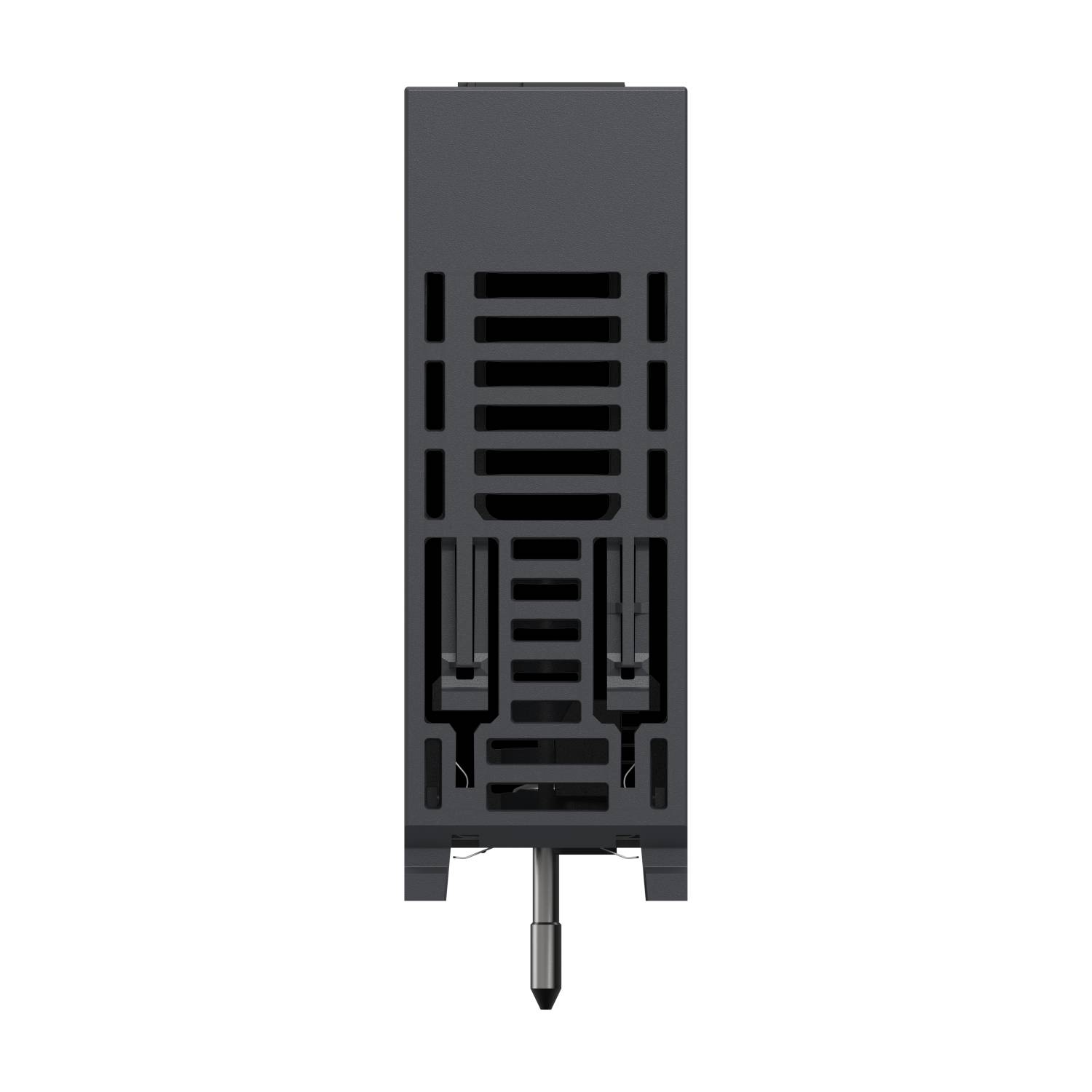

Modicon X80

Product or component type

Analog output module

Product specific application

For severe environments

Electrical connection

20 ways 1 connector

Isolation between channels

Non isolated

Measurement error

<= 0.45 % of full scale - 25...70 °C 0.1 % of full scale 25 °C

Temperature drift

45 ppm/°C 0...20 mA 45 ppm/°C 4...20 mA

Minimum crosstalk attenuation

80 dB

Common mode rejection

80 dB

Isolation voltage

1400 V DC between channels and ground 1400 V DC between channels and bus

Detection type

Open circuit 4...20 mA Short circuit 0...20 mA

Load impedance ohmic

<= 350 Ohm 0...20 mA <= 350 Ohm 4...20 mA

analogue output number

8

Analogue output type

Current: 0...20 mA Current: 4...20 mA

Analogue output resolution

16 bits

supply

Internal power supply via rack

Conversion time

<= 4 ms

Maximum conversion value

0...21 mA 0...20 mA 0...21 mA 4...20 mA

Fallback mode

Configurable Predefined

MTBF reliability

1500000 H

Operating altitude

0...2000 m 2000...5000 m with derating factor

Status LED

1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O

Net weight

0.15 kg

Power consumption in W

3.6 W 24 V DC typical 3.9 W 24 V DC maximum 0.35 W 3.3 V DC typical 0.48 W 3.3 V DC maximum

Current consumption

150 mA at 3.3 V DC 135 mA at 24 V DC

Vibration resistance

3 gn

Shock resistance

30 gn

Ambient air temperature for storage

-40…85 °C

ambient air temperature for operation

-25…70 °C

Relative humidity

5…95 % at 55 °C without condensation

IP degree of protection

IP20

product certifications

Merchant Navy ATEX CE CSA EAC RCM IEC-Ex UL

Standards

EN 61131-2 EN 61000-6-4 EN 61000-6-2 EN 61010-2-201

Environmental characteristic

Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 Hazardous location class I division 2

Protective treatment

Conformal coating

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.300 cm

Package 1 Width

11.000 cm

Package 1 Length

11.500 cm

Package 1 Weight

180.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

15

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.080 kg

Warranty

18 months
