LVS04623

Range

Linergy

Range of product

Linergy

Product or component type

Connection

Product name

Linergy LGYE

product name

PrismaSeT (PrismaSeT P) enclosure Linergy (Linergy LGYE) busbar

Provided equipment

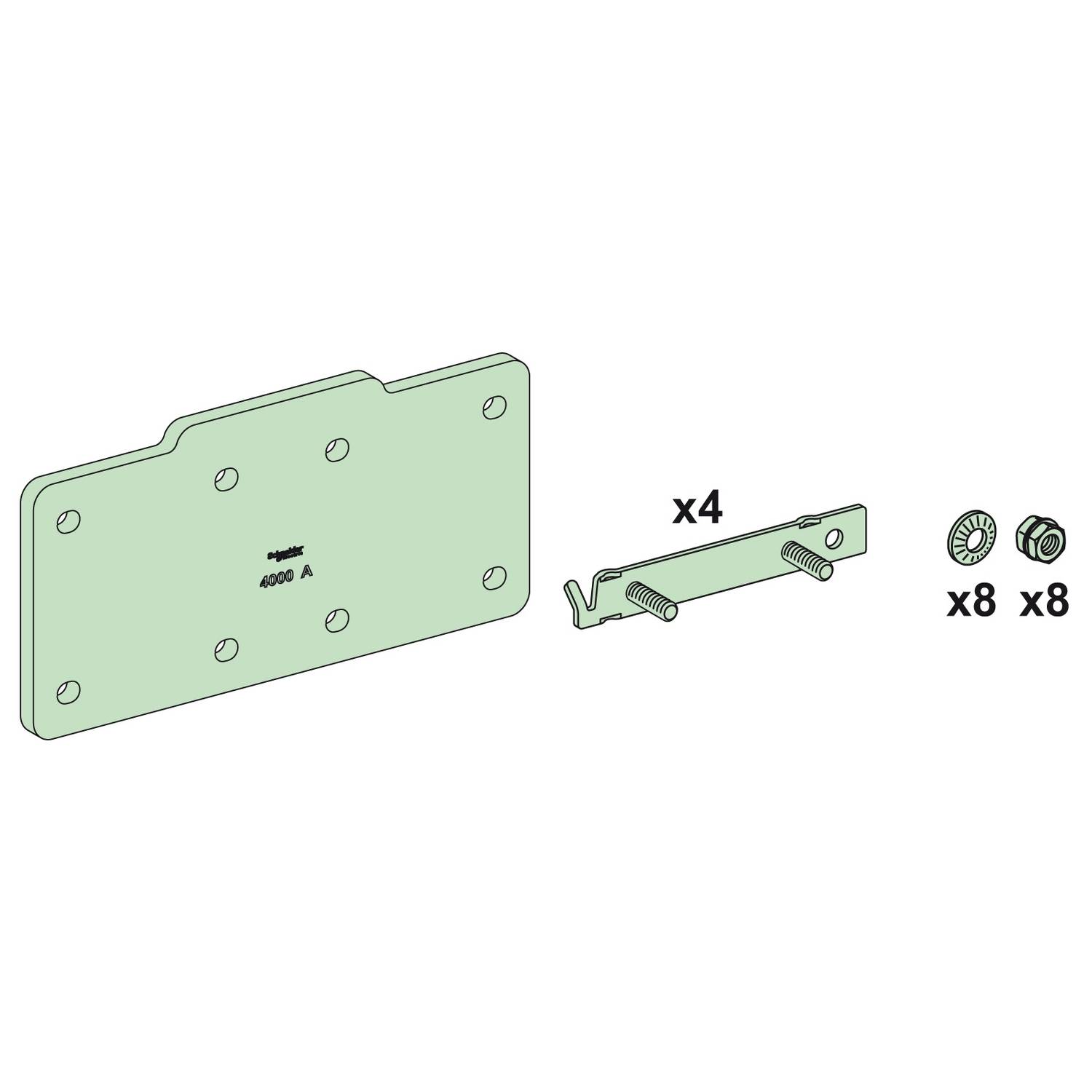

Fixing frame Fixing elements

Standards

IEC 61439-2, inside enclosure IEC 61439-1

product certifications

ASTA

Cubicle-device connection

Linergy busbar

Installed device

Connection: busbar horizontal installation

[Ie] rated operational current

4000 A

height

240 mm

Width

130 mm

Depth

4 mm

Net weight

3.22 kg

Quantity per set

Set of 1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.400 cm

Package 1 Width

13.000 cm

Package 1 Length

23.500 cm

Package 1 Weight

3.124 kg

Unit Type of Package 2

S02

Number of Units in Package 2

3

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

9.633 kg

Warranty

18 months
