LVS04550

Range

Linergy

Range of product

Linergy

Product or component type

Busbar

Product name

Linergy BS

Range compatibility

PrismaSeT (PrismaSeT P) enclosure

Busbar description

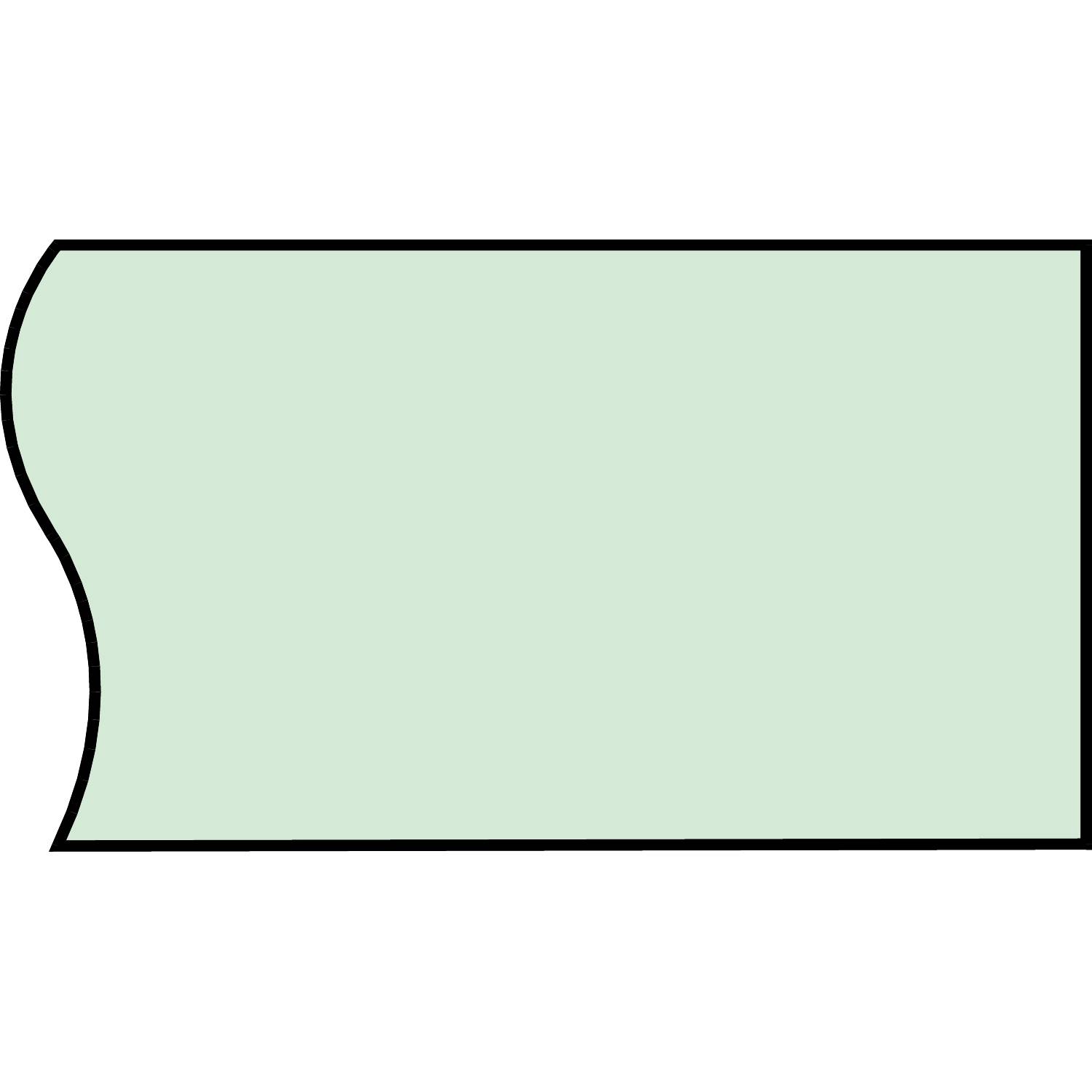

Flat bar

Quantity per set

Set of 1

Installation direction

Vertical, operating position: lateral Horizontal, operating position: top Horizontal, operating position: bottom

installation description

Cubicle - width 650 mm Cubicle - width 650 + 150 mm Cubicle duct - width 300 mm Cubicle duct - width 400 mm

[Ie] rated operational current

2150 A at 35 °C

[Icw] rated short-time withstand current

60 kA (1 s) for 2 supports (horizontal position) 85 kA (1 s) for 3 supports (horizontal position) 40 kA (1 s) (horizontal position) 85 kA (1 s) for 2 supports (horizontal position) 50 kA (1 s) (horizontal position)

Permissible current

2150 A at 35 °C: <= IP31 1900 A at 35 °C: > IP31

Busbar cross section

100 x 10 mm

Length

2000 mm

Width

100 mm

Depth

10 mm

Net weight

18.7 kg

Colour

Natural

Type of busbar connection

Without hole

standards

IEC 61439-2 IEC 61439-1

product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.6 cm

Package 1 Width

18.0 cm

Package 1 Length

212.2 cm

Package 1 Weight

18.342 kg

Unit Type of Package 2

PAL

Number of Units in Package 2

18

Package 2 Height

24.0 cm

Package 2 Width

120.0 cm

Package 2 Length

202.0 cm

Package 2 Weight

358.0 kg

Warranty

18 months
