SmartX Advanced Display v3
Trade Price
£1,779.66
Per
1
Unit
EA
Pack Quantity
1
Information

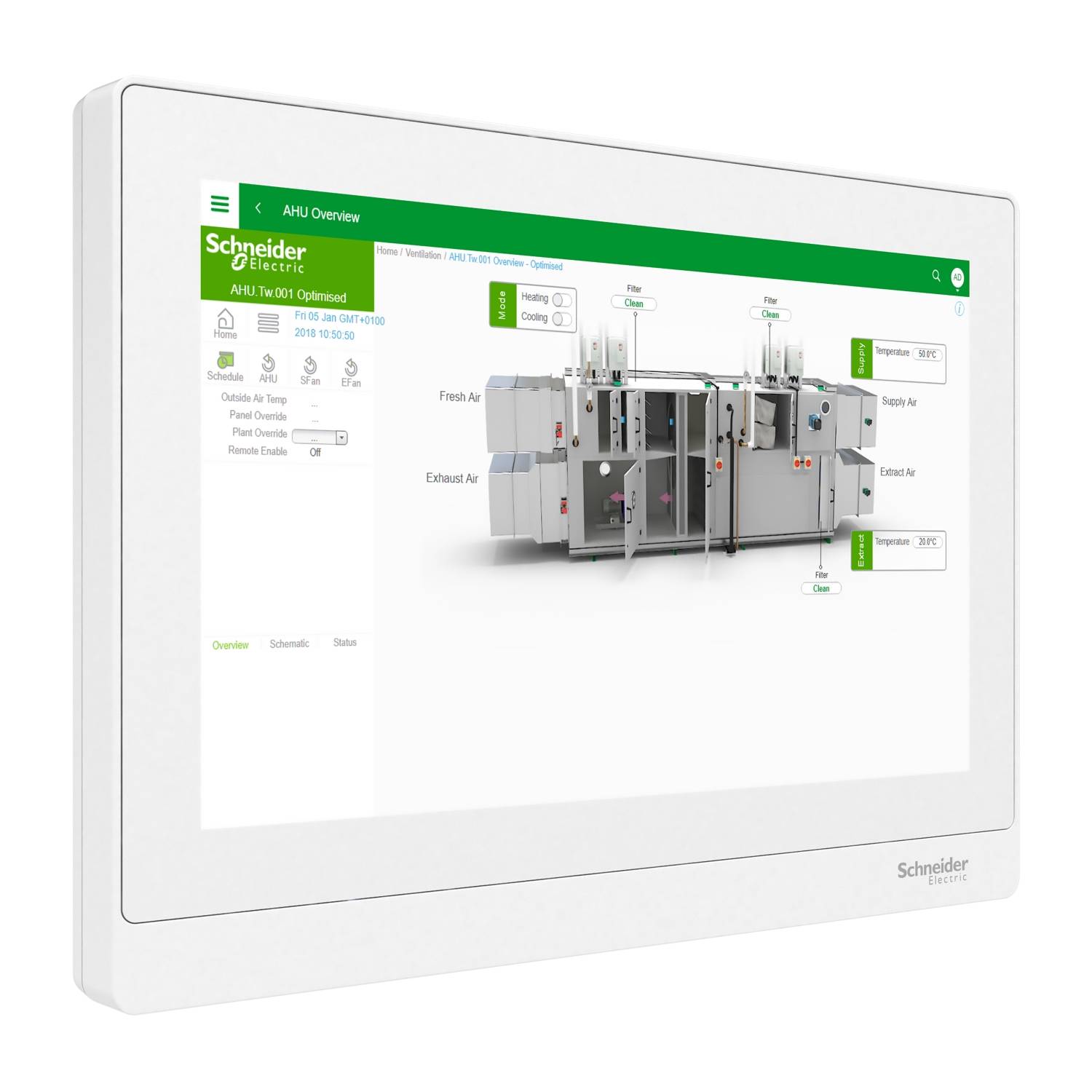

The SpaceLogic Advanced Display V3 bundle includes HMI device, cable fitting with nut, and earth ground screw with washer. It can be locked to an application such as EcoStruxure Building Operation WebStation to create a tool for local operation of an EcoStruxure BMS. It provides an interface through which users can locally access EcoStruxure BMS servers from an HMI terminal installed on a control cabinet. The HMI is based on an Android platform with high-resolution touchscreen display (1280 x 800 pixels). Its dimensions are 195.6 mm (7.7 in.) in height, 258 mm (10.2 in.) in width, 25 mm (1.0 in.) in depth and the display size is 255 mm (10.1 in.). Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP54. The HMI can be installed on a control cabinet. The HMI can communicate with SpaceLogic servers with Y-shaped USB cables (SXWADUSBC10002 or SXWADUSBC10003).
Technical Specifications
Operating system
Android 8.1
flame retardance
UL94-V0
Current consumption
1.27 A
product certifications
CE FCC UL 60950 RCM
Mounting mode
Panel-mounted
Width
258 mm
Embedding depth
15.24 mm
Product or component type
HMI
Net weight
0.933 kg
Enclosure material
ABS/PC
Range
SpaceLogic
height
195.6 mm
Colour
White
[In] rated current
1 A
Display type
TFT LCD touchscreen
Depth
25 mm
Ambient air temperature for operation
0…40 °C
Display resolution
1280 x 800 pixels
Display size
10.1 inch
Ambient air temperature for storage
-20…60 °C
Memory type
2 GB RAM
Communication port protocol
USBNet: USB 2.0
[Us] rated supply voltage
24 V DC +/- 10 % 15...24 V DC +/- 10 %
Range compatibility
SpaceLogic AS SpaceLogic AS-P SpaceLogic AS-B
Standards
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 IEC 60950-1:ed. 2:2005+Am1:2009+Am2:2013 UL 60950-1:ed. 2:2014 CSA C22.2 No. 60950-1-07:ed. 2:2014 EN 55024:2010 FCC part 15 Subpart B class B
Relative humidity
0…95 % RH, non-condensing
Number of port
1, connector type: USB type C
Processor name
Intel Celeron N3350 dual core at 1.1 GHz
Communication network type
Wi-Fi IEEE 802.11 b/g/n at 2.4 GHz
IP degree of protection
IP54
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
11.500 cm
Package 1 Width
29.000 cm
Package 1 Length
36.500 cm
Package 1 Weight
1.333 kg
Unit Type of Package 2
S03
Number of Units in Package 2
2
Package 2 Height
30.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
3.086 kg
Unit Type of Package 3
P06
Number of Units in Package 3
16
Package 3 Height
75.000 cm
Package 3 Width
80.000 cm
Package 3 Length
60.000 cm
Package 3 Weight
32.688 kg
Warranty
18 months
