Lead time

Usually Ships within 4 Weeks

Range

ClimaSys

Product name

CU

Product or component type

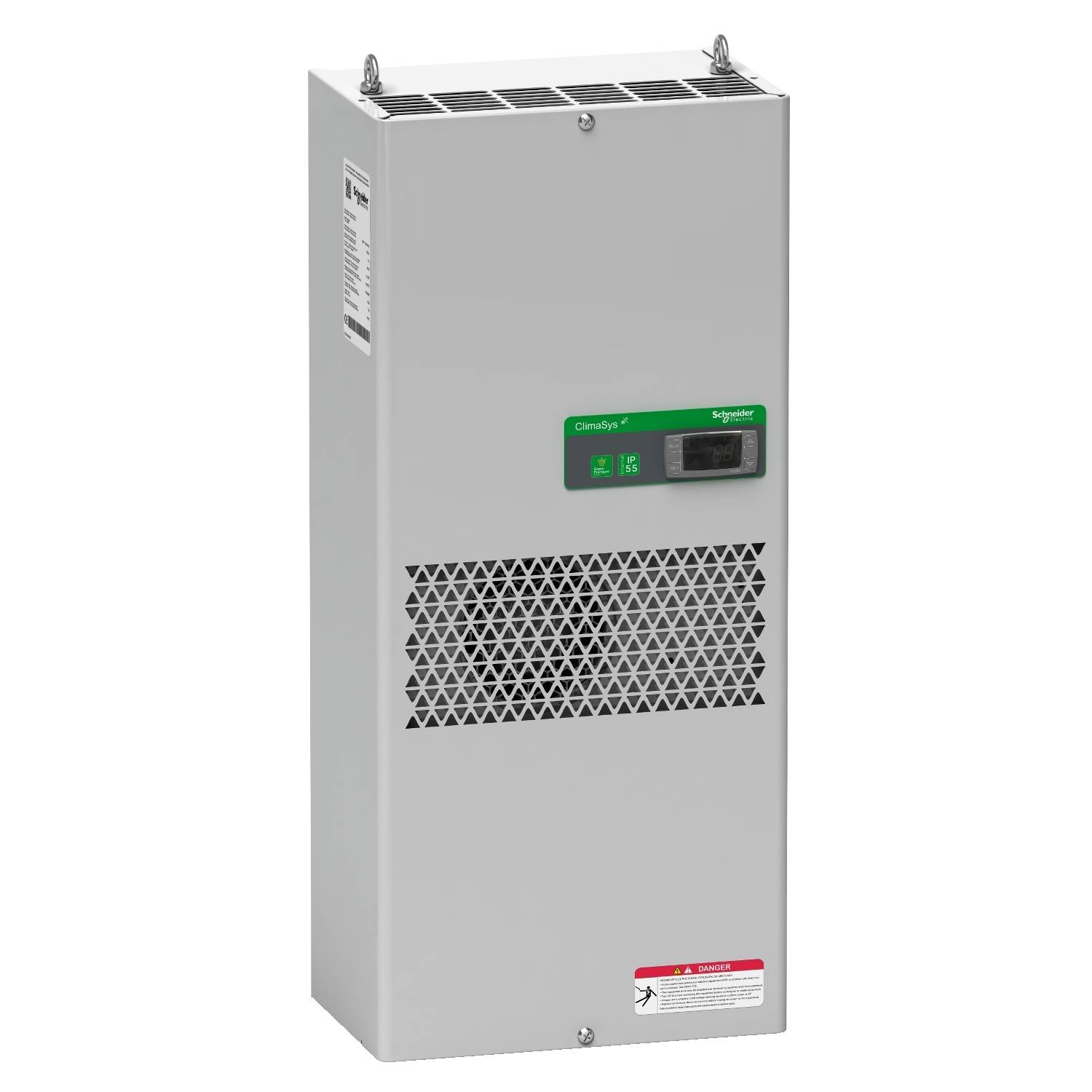

Cooling unit

mounting type

Side

Installation

Indoor side

Product destination

For enclosure

Mounting mode

By screws

Supply Voltage

230 V AC at 50/60 Hz, 1 phase

Rated Power

820 W

Cooling power

820 W 50/60 Hz L35-L35 680 W 50/60 Hz L35-L50

Height

783 mm

Width

348 mm

Depth

215 mm

[In] rated current

2.6 A

Inrush current

10.8 A

Power consumption in W

440 W at 50/60 Hz, L35-L35 490 W at 50/60 Hz, L35-L50

Energy efficiency ratio

1.9

Control type

Electronic controller

Temperature setting range

20…55 °C at 50 Hz 20…50 °C at 60 Hz

Ambient air temperature for operation

20…46 °C inside the enclosure: 55 °C maximum: 20…55 °C at 50 Hz outside the enclosure: 20…50 °C at 60 Hz outside the enclosure:

Noise level

65 dB conforming to EN/ISO 3746

Pressure

25 bar

Flow rate

Internal circuit: 330 m3/h at 50/60 Hz External circuit: 570 m3/h at 50/60 Hz

Net weight

27 kg

Cooling gas type

R134a (0.23 kg)

Type of filter

Optional external circuit filter

Protection type

Thermal protection: T 6 A Short-circuit protection (magnetic):

Material

Steel

Colour

Grey (RAL 7035)

product certifications

CE

Directives

2006/42/EC - machinery 2006/95/EC - low voltage directive 2004/108/EC - electromagnetic compatibility

standards

EN 60204-1 EN/ISO 12100 EN 60335-2-40 EN 378 EN 60335-1

IP degree of protection

IP54 conforming to IEC 60529 (on the internal circuit) IP34 conforming to IEC 60529 (on the external circuit)

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

21.5 cm

Package 1 Width

34.8 cm

Package 1 Length

78.3 cm

Package 1 Weight

27.0 kg

Unit Type of Package 2

P12

Number of Units in Package 2

6

Package 2 Height

103.0 cm

Package 2 Width

80.0 cm

Package 2 Length

120.0 cm

Package 2 Weight

212.0 kg

Warranty

18 months
