NSYCVF300M230DG

Range

ClimaSys

Product name

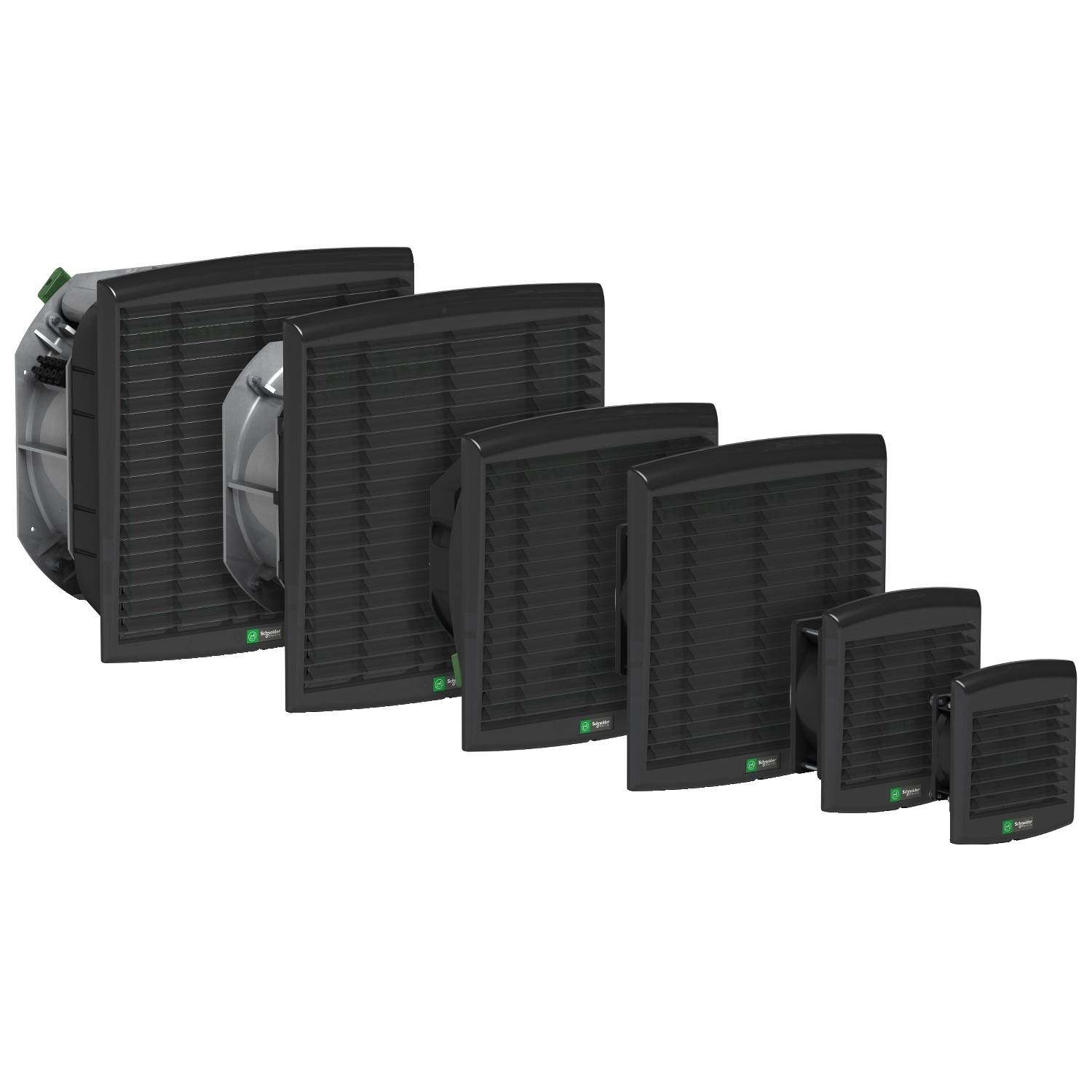

ClimaSys CV

Product or component type

Fan

Range compatibility

Spacial

Type of filter

G2

Flow rate

Free flow rate with standard filter: 300 m3/h at 50 Hz Free flow rate with standard filter: 350 m3/h at 60 Hz

[Us] rated supply voltage

145...253 V

Input voltage

230 V 50/60 Hz

Certification

CE EAC EMC directive 89/336 EEC

Absorbed power

36 W 50 Hz 37 W 60 Hz

[In] rated current

0.16 A 50 Hz 0.17 A 60 Hz

Noise level < at

55…56 dB

Bearing type

Ball

Height

268 mm external:

Width

248 mm external:

Depth

116 mm external:

Cut-out dimensions

223 x 223 mm

Net weight

1.640 kg

Material

Outlet grille: injected thermoplastic (PC) Motor support: injected thermoplastic (ASA PC)

Colour

Outlet grille: smoked black (RAL 9005) Motor support: black (RAL 9005)

Ambient air temperature for operation

-20…60 °C

Ambient air temperature for storage

-40…70 °C

Maximum pressure

158 Pa flow rate 0 m³/h

Connections - terminals

Faston connector

Device composition

1 axial motor 1 external protective transparent smoked grille: front 1 smart filter with dust sensor 1 fan sensor ready to be mounted: rear of outlet grille 1 cable gland 1 cut-out template

Condition of use

Filter must be cleaned and replaced regularly Flow rates depends on the work point, see ProClima software Overfrequent filter replacement should be avoided Surrounding environment must be relatively clean Outside temperature must be 5 °C lower than inside temperature

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

13.4 cm

Package 1 Width

24.8 cm

Package 1 Length

26.8 cm

Package 1 Weight

1.64 kg

Unit Type of Package 2

CAR

Number of Units in Package 2

4

Package 2 Height

28.5 cm

Package 2 Width

40.0 cm

Package 2 Length

60.0 cm

Package 2 Weight

7.838 kg

Warranty

18 months
