NSYS3D121030P
S3D H1200XW1000XD300+CHASSIS
Trade Price
£558.19
Per
1
Unit
EA
Pack Quantity
1
Information

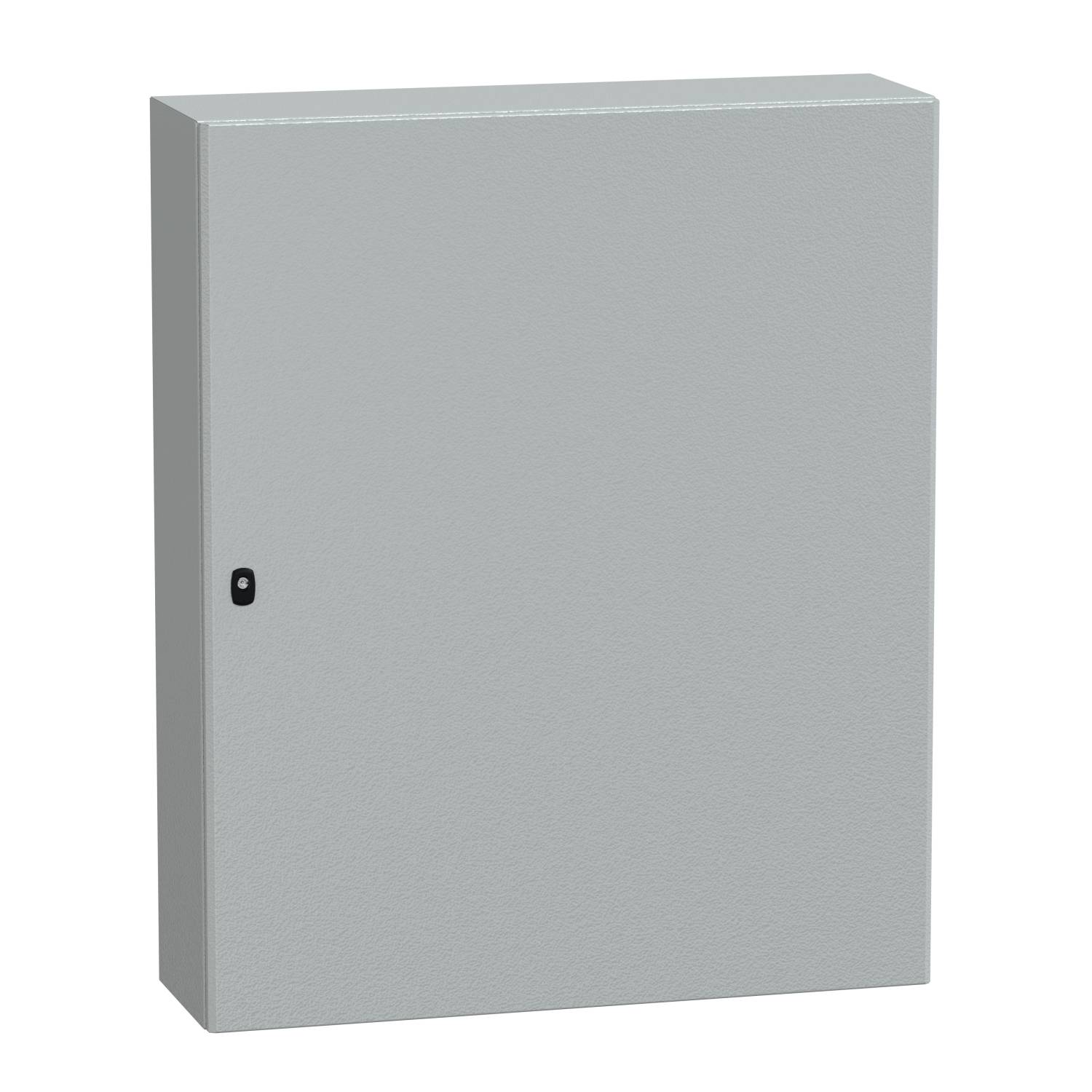

Spacial S3D wall mounted steel enclosure with plain door. 1200 x 1000 x 300 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035. 2 cable gland plates included, standard.
Technical Specifications
Range
Spacial
Product name
Spacial S3D
Application
Multi-purpose
Category
Compact enclosure
Enclosure nominal height
1200 mm
Enclosure nominal width
1000 mm
Enclosure nominal depth
300 mm
Door type
Plain
Mounting plate description
Plain
Type of gland plate
Standard
Installation accessory type
Wall-mounting
Device composition
1 body 2 cable gland plate 1 mounting plate 1 door with lock
body type
Gutter-shaped front rail double sheet thickness Single piece body
Number of doors
Front face: 1 door(s)
Door opening side
Reversible (120 °)
Lock type
3 points lock, 3 mm double-bar
accessibility for operation
Front
Removable parts
Door by hinges Cable gland plate by screws Mounting plate by fixing element
Material
Enclosure: steel Mounting plate: galvanised steel
Surface finish
Enclosure: epoxy-polyester powder
Colour
Enclosure: grey (RAL 7035)
Standards
IEC 62208
product certifications
BV LR DNV GL UL cUL
Net weight
74 kg
NEMA degree of protection
NEMA 4X/13
IK degree of protection
IK10 conforming to IEC 62262
IP degree of protection
IP66 conforming to IEC 60529
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
35.0 cm
Package 1 Width
101.0 cm
Package 1 Length
122.0 cm
Package 1 Weight
73.5 kg
Unit Type of Package 2
P12
Number of Units in Package 2
2
Package 2 Height
117.0 cm
Package 2 Width
80.0 cm
Package 2 Length
120.0 cm
Package 2 Weight
160.0 kg
Warranty
18 months
