NSYPAP64G
Internal door PLM64G
Trade Price
POA
Per
1
Unit
Pack Quantity
Information

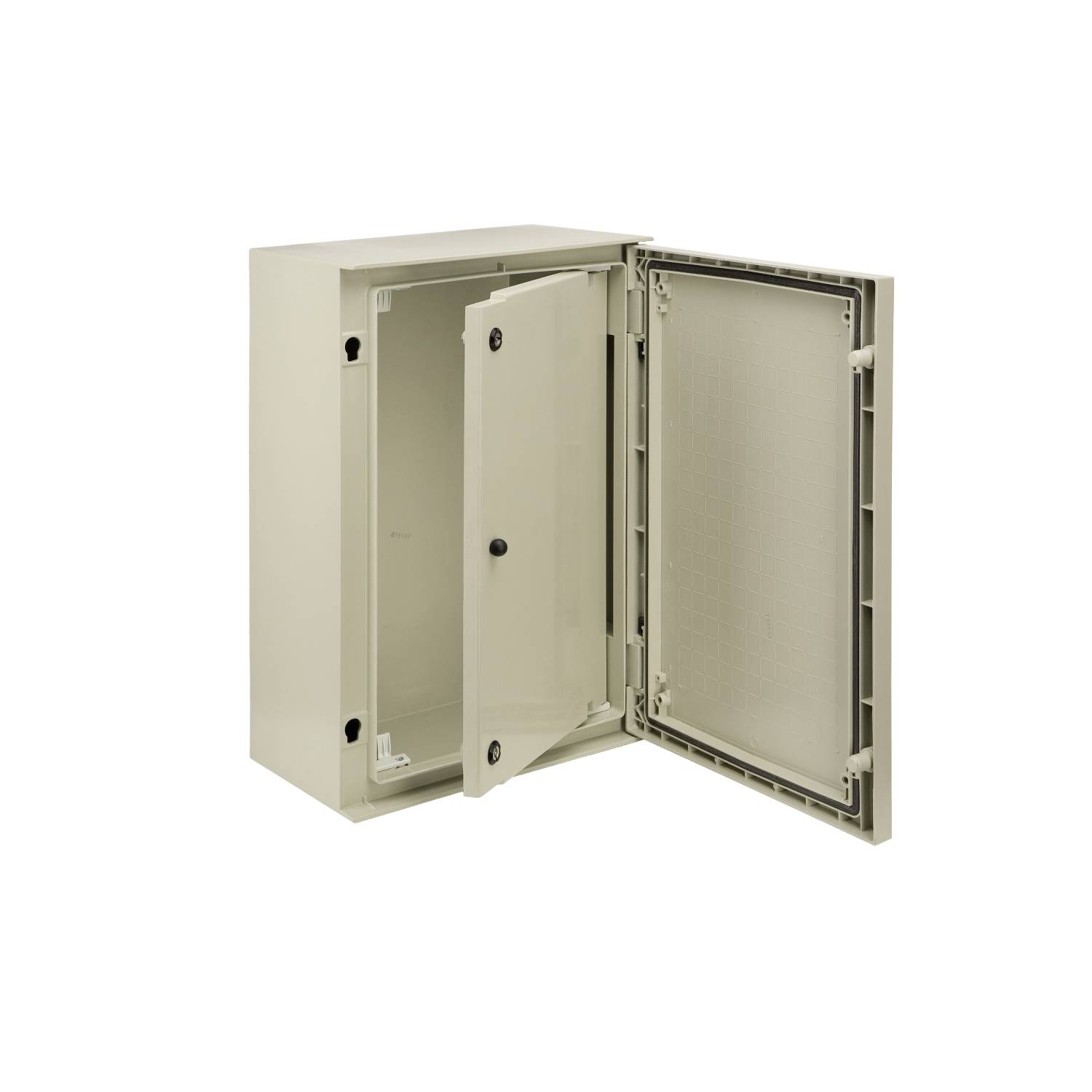

Reversible internal polyester door with grid pattern for Thalassa PLM64. 515 x 305 mm. Multi-purpose. Internal plain door. 2 locks with 5 mm double bar insert system. Reversible 110° opening side. Polyester charged with fibreglass material. Grey RAL 7035. Door, handle, 4 fixing brackets incl.
Technical Specifications
Range
Thalassa
accessory / separate part category
Enclosure accessory
Product or component type
Door
Application
Multi-purpose
For enclosure nominal dimensions
-
Mounting location
Front side
Range compatibility
Thalassa (Thalassa PLM)
Device composition
1 door 1 handle 4 fixing brackets
Material
Polyester charged with fibreglass
Colour
Grey (RAL 7035)
Lock type
Lock 5 mm double bar
Number of locks
2
Door type
Internal plain
Door opening side
Reversible (110 °)

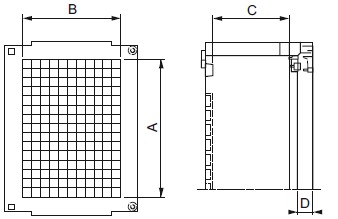

Height
515 mm grid pattern:
Width
305 mm grid pattern:
Depth
32 mm available depth between enclosure door: 194 mm available depth between rear:
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.000 cm
Package 1 Width
37.000 cm
Package 1 Length
60.500 cm
Package 1 Weight
1.881 kg
Unit Type of Package 2
BB1
Number of Units in Package 2
5
Package 2 Height
29.000 cm
Package 2 Width
38.500 cm
Package 2 Length
61.000 cm
Package 2 Weight
9.510 kg
Unit Type of Package 3
P12
Number of Units in Package 3
20
Package 3 Height
90.000 cm
Package 3 Width
80.000 cm
Package 3 Length
120.000 cm
Package 3 Weight
49.620 kg
Warranty
18 months
Document Links
Datasheet
