A9C20882
ICT 100A 2NO 220...240VAC 50HZ CONTACTOR
Trade Price
£282.99
Per
1
Unit
EA
Pack Quantity
1
Information

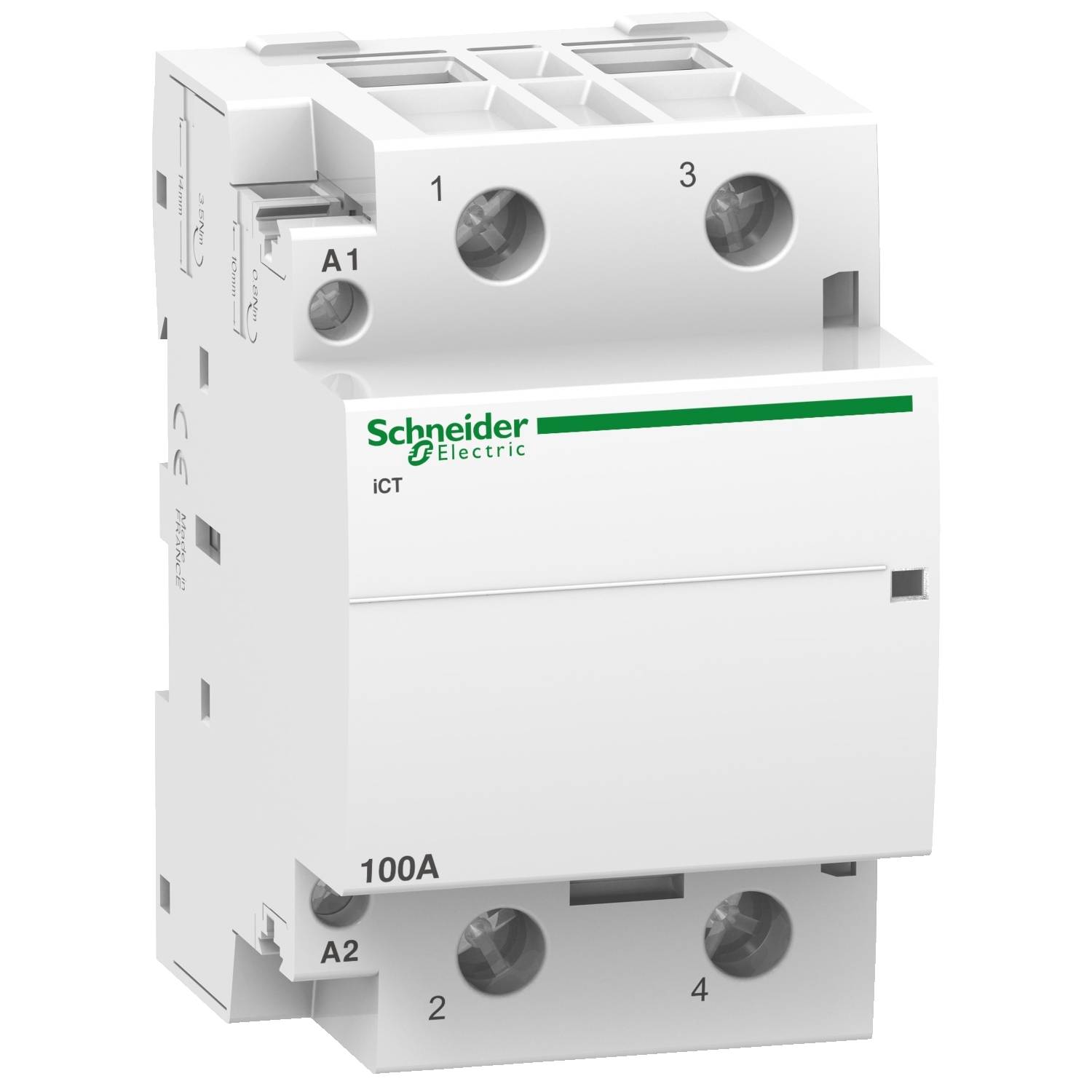

This Acti9 iCT is a modular contactor. It is a 2P remote control device with 2 normally open contact. The In rated current is 100A for AC-7a. The Ue rated operational voltage is 250VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. This device could be used for HVAC system applications. This product is compliant with EN/IEC 61095 standard. Electrical endurance goes up to 30000 cycles for AC-7A. The maximum switching operations is 100 per day. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 6 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 85mm x (H) 54mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.
Technical Specifications
range of product
Acti9
Product name
Acti9 iCT
Product or component type
Contactor
Device short name
iCT
Device application
Heating-low inductive load
Poles
2P
[Ie] rated operational current
100 A AC-7A
Pole contact composition
2 NO
Network type
AC
Utilisation category
AC-1 conforming to EN 60947-4-1 AC-7A conforming to EN 61095 AC-7A conforming to IEC 61095 AC-7A conforming to UTE C 61-481 AC-1 conforming to IEC 60947-4-1
Control type
Remote control
[Uc] control circuit voltage
220...240 V AC 50 Hz
Network frequency
50 Hz
[Ue] rated operational voltage
250 V AC 50 Hz
Maximum power
AC-7A: 2.1 W at 250 V AC 50 Hz
[Ui] rated insulation voltage
500 V AC 50 Hz
[Uimp] rated impulse withstand voltage
4 kV
control signal type
Maintained
Switching frequency
100 switching operations/day
Local signalling
Action indicator
Hold-in power consumption in VA
6.5 VA
Inrush power in VA
53 VA
Mounting mode
Clip-on
mounting support
35 mm symmetrical DIN rail
9 mm pitches
6
height
85 mm
Width
54 mm
Depth
60 mm
Colour
White
Electrical durability
30000 cycles EN 61095 250 V 16 A AC 50 Hz AC-7A 30000 cycles UTE C 61-481 250 V 6 A AC 50 Hz AC-7A 30000 cycles IEC 61095 250 V AC 50 Hz AC-7A
Connections - terminals
Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible Power circuit: tunnel type terminals1 cable(s) 6…35 mm² solid or flexible
Tightening torque
Power circuit: 3.5 N.m Control circuit: 0.8 N.m A1 / A2
Product compatibility
IACTs IACTp IATEt IACTc
Compatibility code
ICT
Market segment
Small commercial Residential
standards
UTE C 61-481 IEC 61095 EN 61095
Noise level
30 dB
Heat dissipation
2.1 W at 50/60 Hz
IP degree of protection
IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Pollution degree
2
Tropicalisation
2 conforming to EN 60947-4-1
Relative humidity
95 % at 55 °C
Operating altitude
2000 m
Ambient air temperature for operation
-5…60 °C
Ambient air temperature for storage
-40…70 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
6 cm
Package 1 Width
11.2 cm
Package 1 Length
12.2 cm
Package 1 Weight
351 g
Unit Type of Package 2
BB1
Number of Units in Package 2
4
Package 2 Height
11.5 cm
Package 2 Width
12.6 cm
Package 2 Length
25 cm
Package 2 Weight
1.485 kg
Unit Type of Package 3
S03
Number of Units in Package 3
24
Package 3 Height
30 cm
Package 3 Width
30 cm
Package 3 Length
40 cm
Package 3 Weight
9.285 kg
Warranty
18 months
